FEATURES

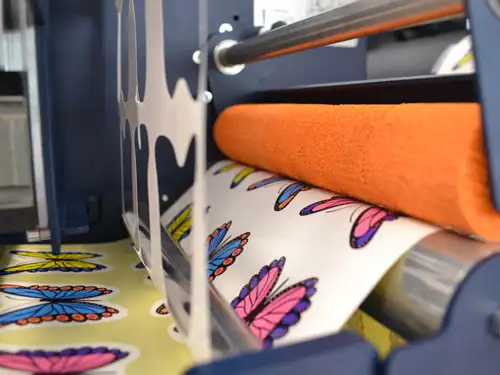

Virgo is a compact destop finishing system that unwinds, laminates labels for durability, digitally die cuts, removes excess label material around each die-cut shape, slit, and rewinds offering you everything to professionally cut and finish labels.

The system provides a very accurate label finishing solution using cutting plotter technology with reduced dimensions.This allows you to cut different types of materials and shapes on the fly without the added cost of dies.

The unit is also equipped with a cutter management tool that works in tandem with a camera forming an integrated optical black-mark registration system providing cutting speed optimization and avoiding synchronization issues.

The Virgo's core features offer the user full flexibility, limitless variations in label design with a smooth workflow.

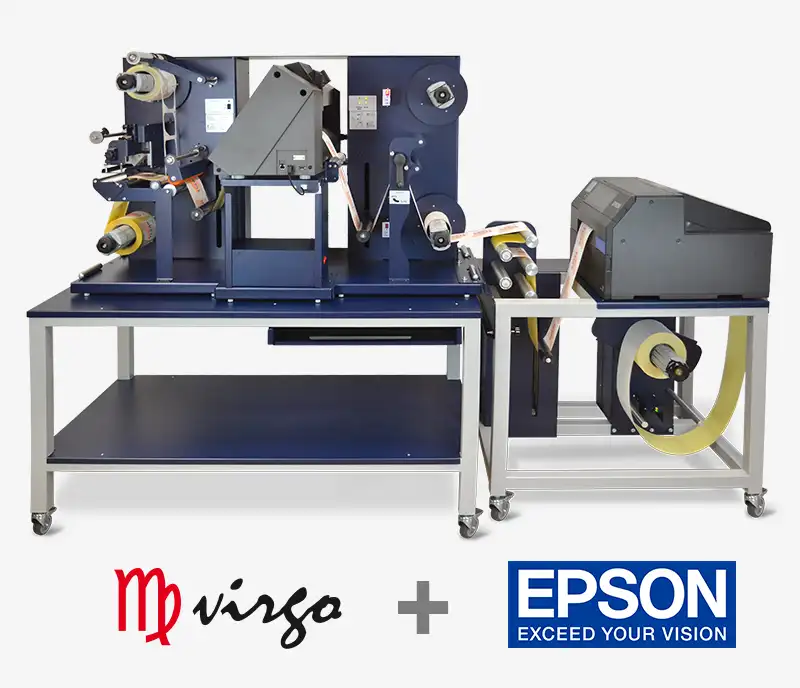

The Virgo digital label finisher is truly the perfect on-demand short run label finishing solution for those using a digital color label printers and presses.

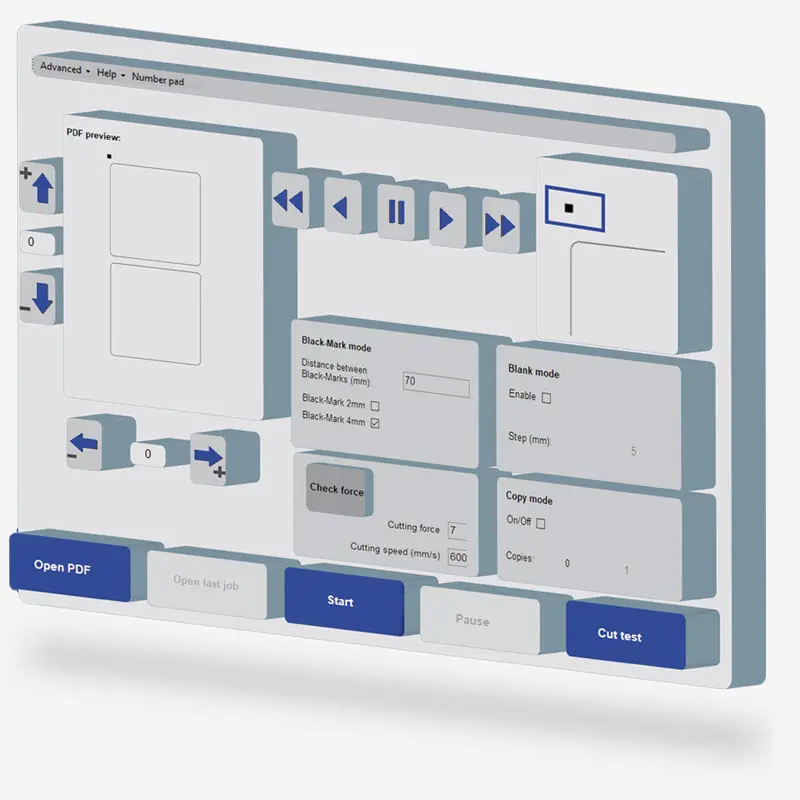

Virgo software
Virgo software works together with a camera forming an integrated optical black-mark registration system.
With this software, the operator can import the cutting files created on Adobe Illustrator or Corel Draw which is also used to create the black marker.

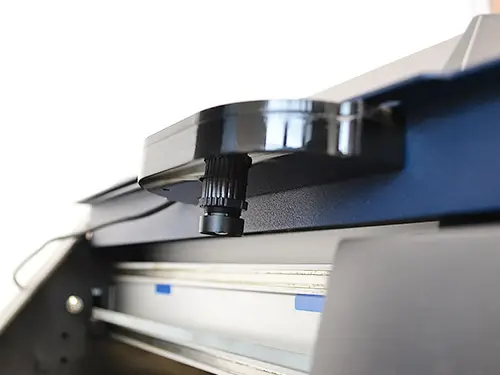

Virgo is equipped with a camera used to detect the black-mark printed on the media. This camera assist the software in detecting the black-mark created inside the cutting file.

This process tells the plotter when and where to start cutting the media.

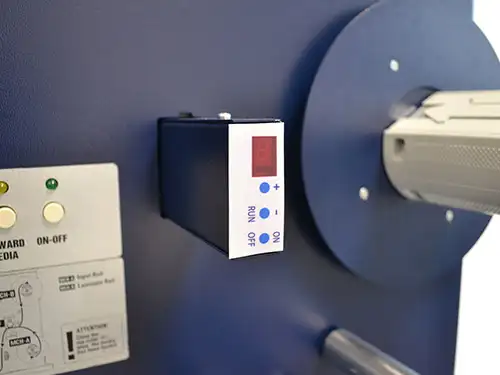

Label face in or face out
Thanks to an easy button equipped on Virgo, you can choose how obtain the finished rolls of label.
This button allows the user to control the direction of the rotation on rewinder core holder giving, you the user, the ability to choose whether to have the finished label rolls facing in or facing out.

This added benefit makes the Virgo a complete machine for all of your business needs.


Brochure

What D.P.R. Virgo has and The Competition doesn’t…
Optical Sensing With the help of the camera, the Virgo uses an integrated optical black-mark registration system allowing it to read one black-mark for each cutting layout, optimizing cutting speed with no synchronization issues.

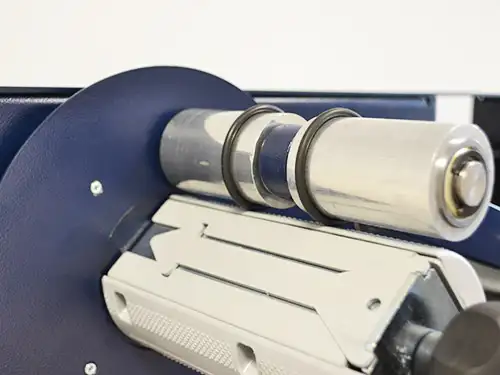

Adjustable Clutch This feature allows for a flat tight finished roll and waste material.
Size Does Matter Virgo compact size help operators have more room to easily and quickly load the media and get the machine ready to work in a few minutes.
Media Track Virgo is equipped with an ultrasonic sensor system that generates a loop of media both in plotter input and output in order to guarantee a smooth media track during the cutting operations.

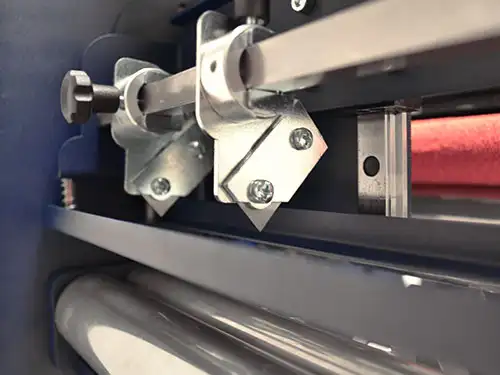

Slitter Blades Virgo is equipped with inexpensive multi edge blades helping to extend the life of the blade.
Blank Labels Cutting blank labels on the Virgo is hassle free. With the help of the Scorpio software, operators will only need to set label step, meaning there's no need to load media with a pre-printed black-marker.
Software Virgo proprietary software can be installed on any Windows based computer running XP or later.
Remote Assistance Customers whose computers are connected to internet can be reached by one of our operators for remote assistance and firmware upgrades.
All trademarks and copyrights are the property of their respective owners.


F E A T U R E S

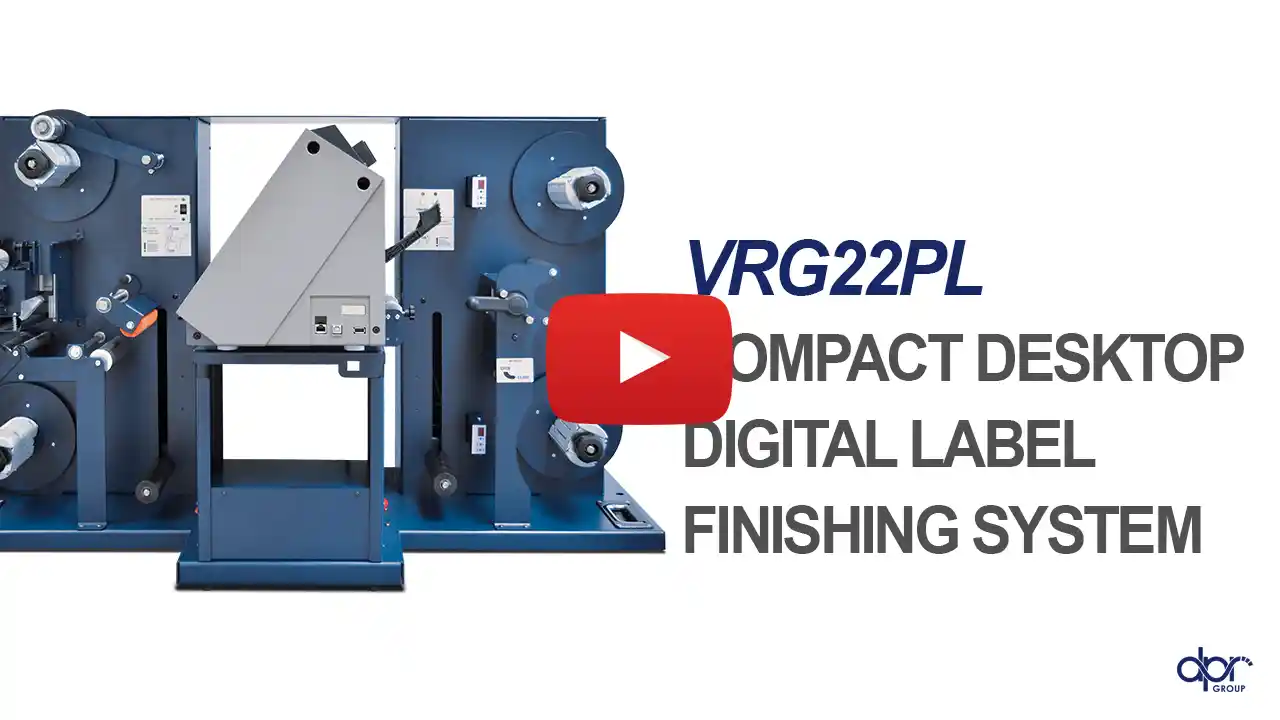

  VRG14PL VRG22PL
Input / Output Roll Diameter 7.87” (200mm) 9.84” (250mm)
Minimum Web Width 3.94” (100mm) 3.94” (100mm)
Maximum Web Width 5.51” (140mm) 8.86” (225mm)
Maximum Cutting Width 4.80” (122mm)) 7.87” (200mm)
Minimum Slitting Width 0.75” (19mm)
Minimum Label Length 0.39” (10mm)
Maximum Label Length 7.87” (200mm)
Lamination Module YES
Number of Slitting Blades up to 6 up to 8
Maximum Media Thickness 10 mil (0.25mm)
Maximum Cutting Speed 24 in/s (600mm/s) in all directions
Roll Core Size 3” (76mm)
Agency Certifications CE, FCC, RoHS
Warranty One Year Parts and Labor. Usage Limitation may apply

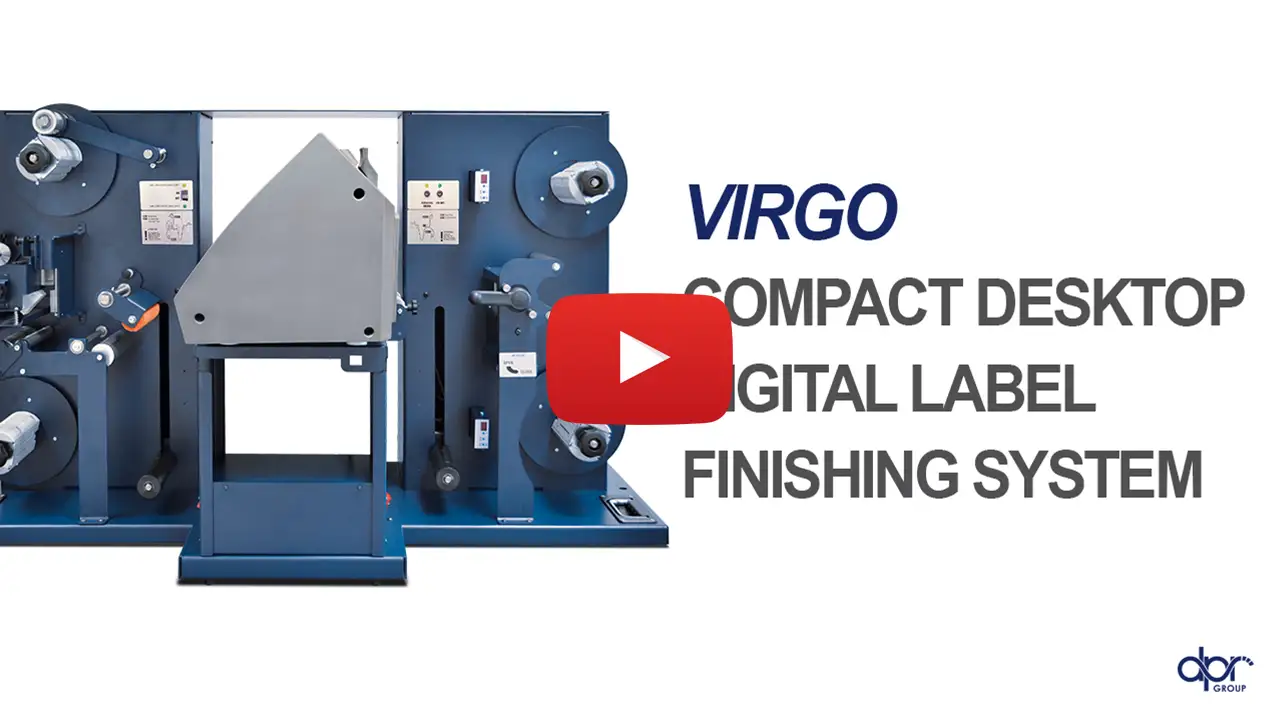

VIDEO
