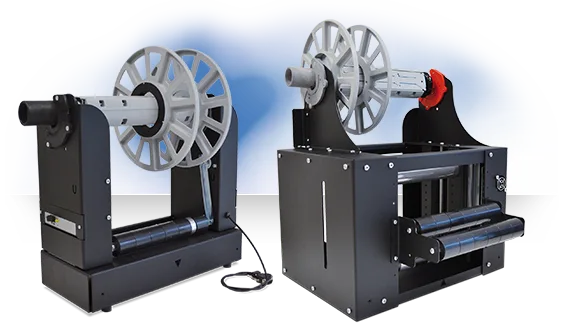

Motorized Core Holder XL

  • motorized core holder XL
  • Roll diameter:

    Up to 9.84" (250mm)

    Media width:

    Up to 9.45" (240mm)

    Core Holder:

    3" fixed


FEATURES


Our MCH XL Rewinders & Unwinders are the perfect companions to most digital inkjet label printers.
Thanks to its revolutionary design and solidly manufactured quality, the MCH XLs are perfect for high usage and heavy duty jobs.

Roll diameter and weight will never be a problem again!

The MCH XLs can handle labels up to 9.45" (240mm) wide, and rewind or unwind rolls with OD up to 10" (250mm).
Rolls are rewinded/unwinded onto/from a 3" (76mm) core holder.

Thanks to the clutch system in place, it is possible to obtain different levels of roll tightness.


Brochure | User Manual Rewinder XL | User Manual Unwinder XL | Shop Now |

M O D E L S

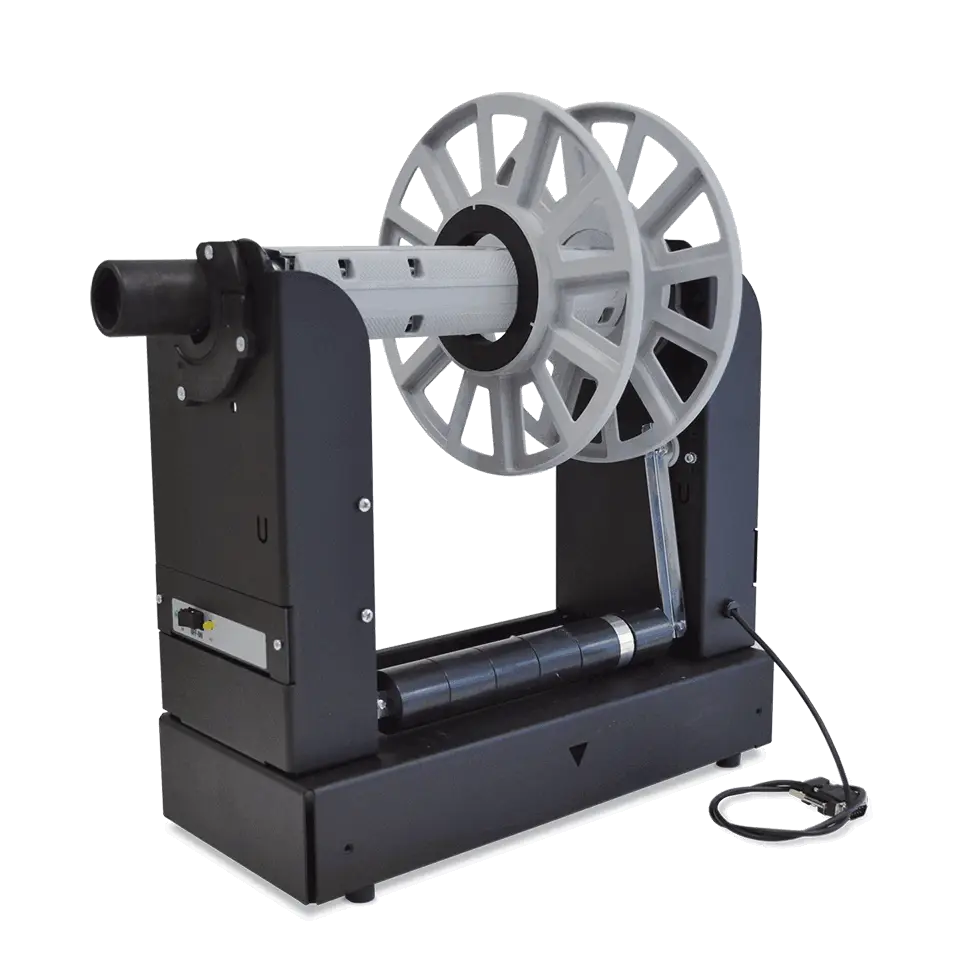

MCH51URXL MCH100RUXL
MCH51URXL MCH100RUXL
Label Unwinder

Maximum OD Roll 9.84” (250mm)
Maximum Media Width 9.45” (240mm)
Speed 51rpm
Label Rewinder

Maximum OD Roll 9.84” (250mm)
Maximum Media Width 9.45” (240mm)
Speed 51rpm


SIZE
MODELS LENGTH WIDTH HEIGHT
Label Unwinder 19.68" (50cm) 19.29" (49cm) 18.89" (48cm)
Label Rewinder 32.28" (82cm) 19.29" (49cm) 22.83" (58cm)

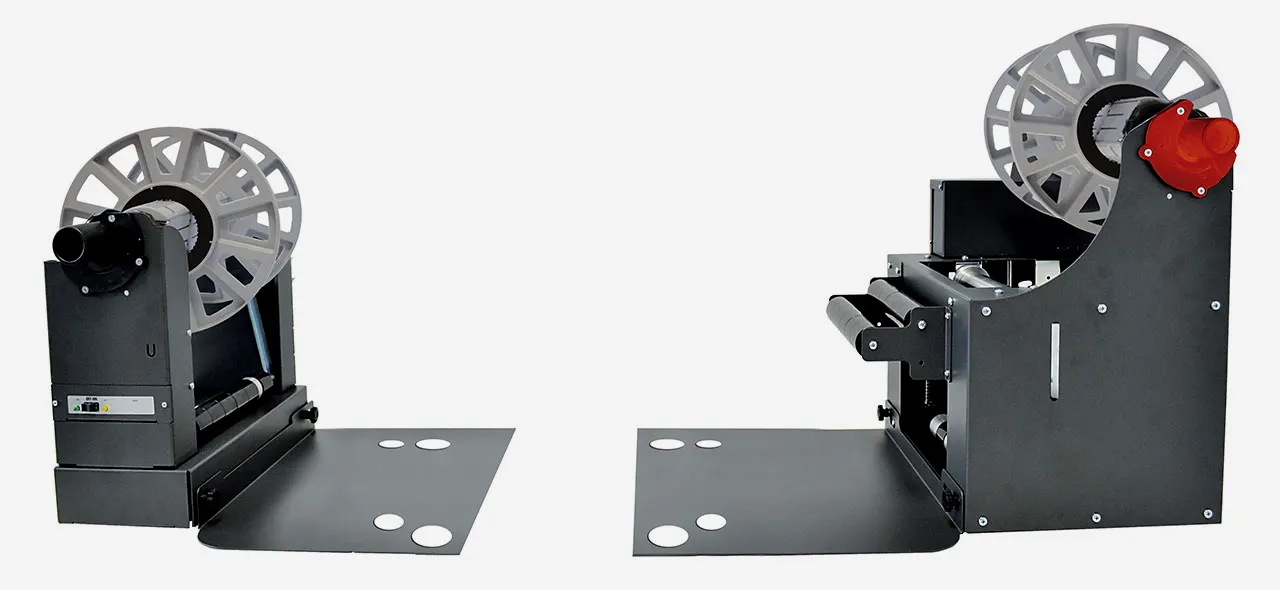

Roll to Roll System XL
(Unwinder + Printer Plate + Rewinder)


The MCH XL s can be configured as standalone rewinder or unwinder, or as a complete roll to roll system (unwinder + printer plate + rewinder) for use with most digital inkjet label printers available on the market.
MCH51R2RXL



PRINTER PLATE SIZE
MODELS LENGTH WIDTH HEIGHT
Label Unwinder 11.41" (29cm) 19.29" (49cm) 1.18" (3cm)
Label Rewinder 13.38" (34cm) 19.29" (49cm) 1.18" (3cm)

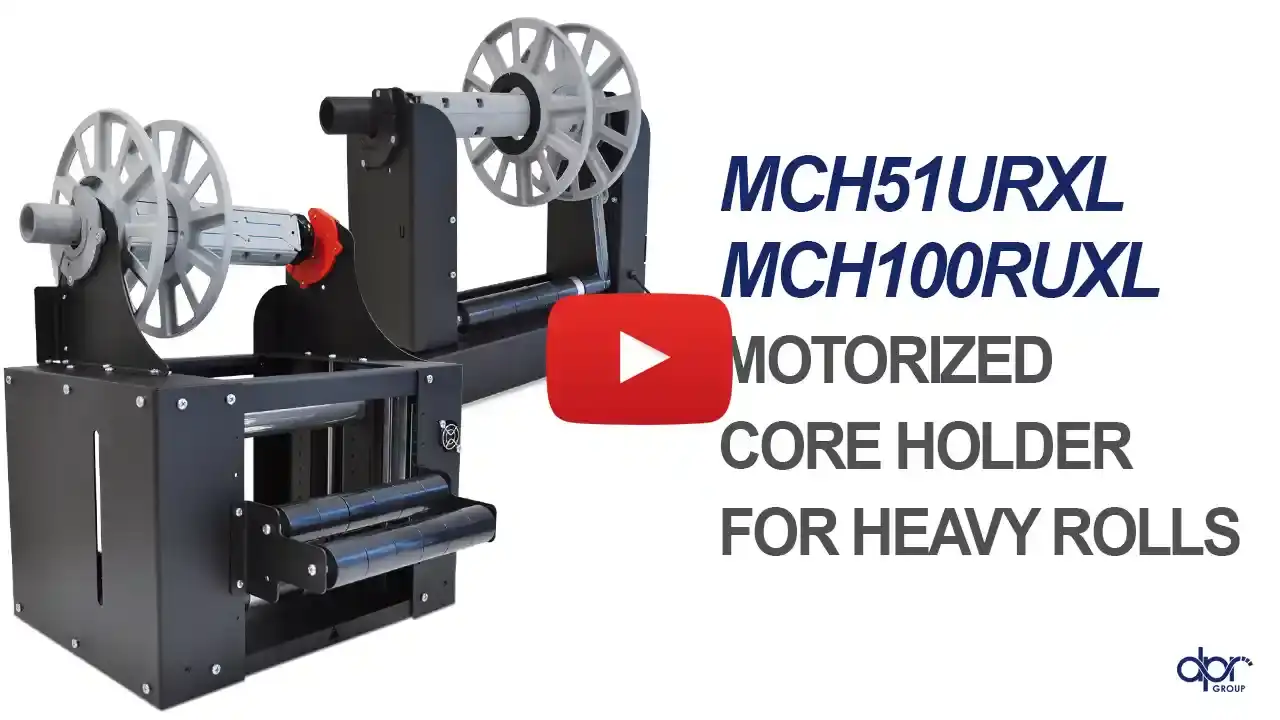

VIDEO




GALLERY

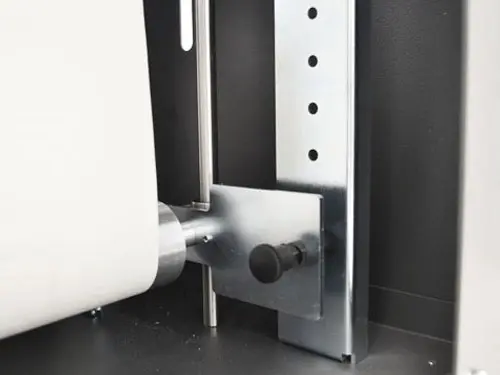

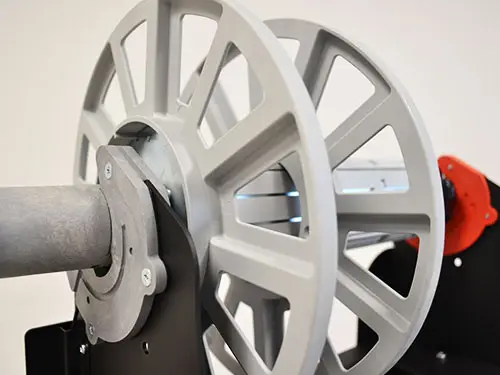

  • DPR motorized core holder MCH XL detail
  • DPR motorized core holder MCH XL detail
  • DPR motorized core holder MCH XL detail
  • DPR motorized core holder MCH XL detail
  • DPR motorized core holder MCH XL detail
  • DPR motorized core holder MCH XL detail
