FEATURES

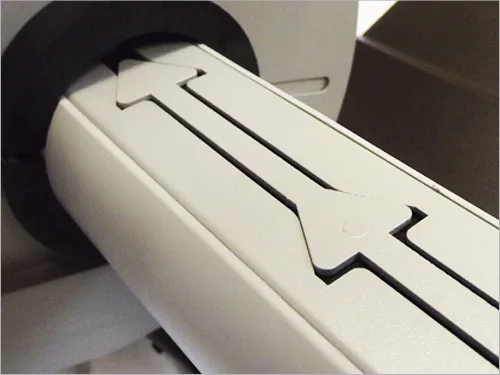

Our range of label rewinders can handle labels up to 4.72" (120mm), 5" (127mm) and 6.85" (174mm) wide and rewind rolls with a diameter up to 6.7" (170mm), 10" (250mm) and 11.81" (300mm) onto an adjustable core holder from 1.57" (40mm) up to 4.64" (118mm).

It is possible to add an optional support for heavy rolls (if the unit is equipped with support, the core holder is adjustable, from 1.81" (46mm) up to 4.64" (118mm). Our label rewinder is equipped with an external auto-switching 100/240VAC - 2.5A at 24V power supply and an electronic circuit controls the functions.

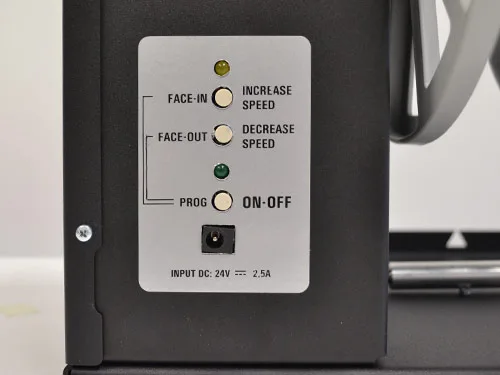

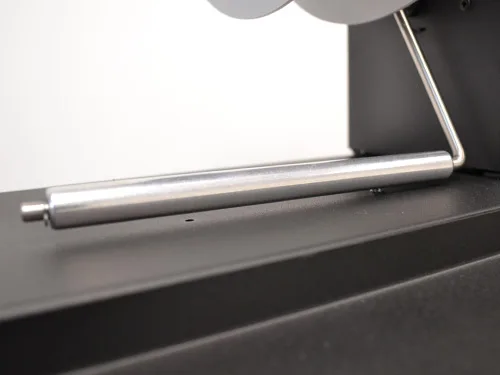

When the roll of labels runs out, the rewinder stops by uttering an acoustic signal. The ability to adjust the direction of rotation, clockwise or counterclockwise, allows to rewind the labels face in or face out. The tension arm adjusts the speed of rotation. When the arm is down, the rewinder will rotate at full speed.

Whereas, when the tension arm is up, the rewinder is idle, which blocks the motor’s rotation when the printer stops.


Brochure

M O D E L S

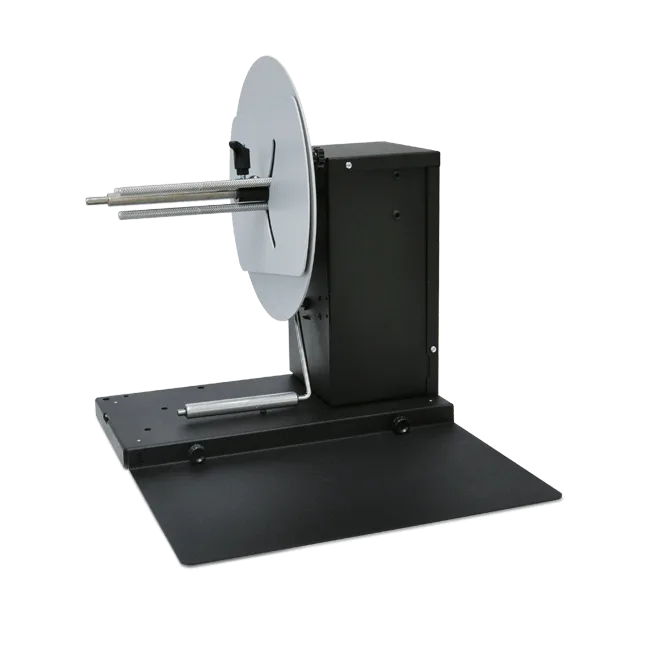

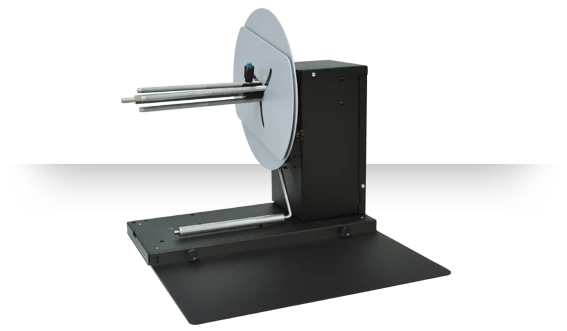

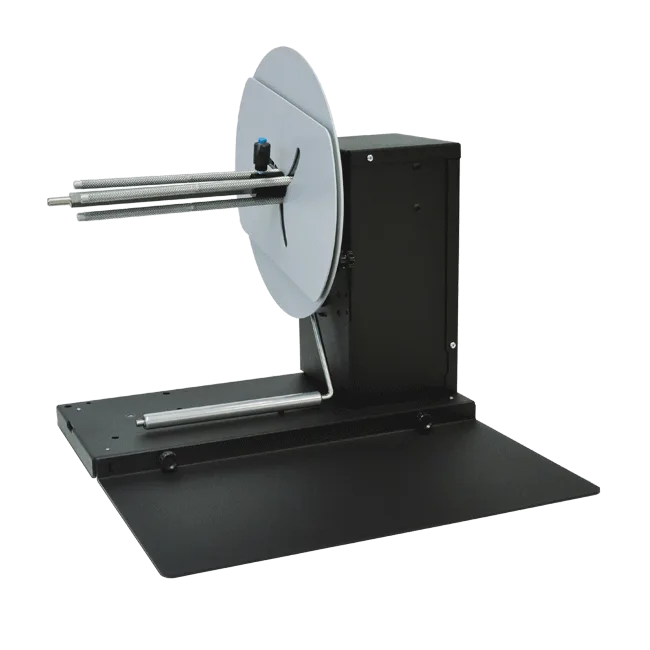

AD1211-S0 AD1221-S0

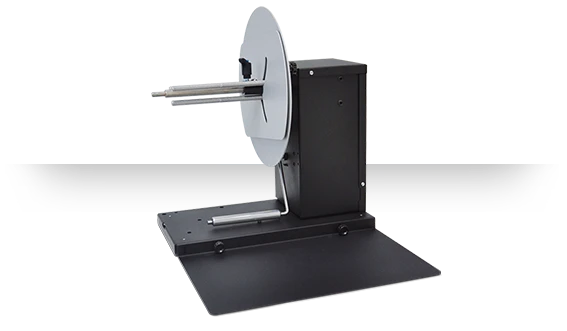

AD1211-S0 ASD1111-S0
Roll Diameter up to 10" (250mm)
Label Width up to 5" (127mm)

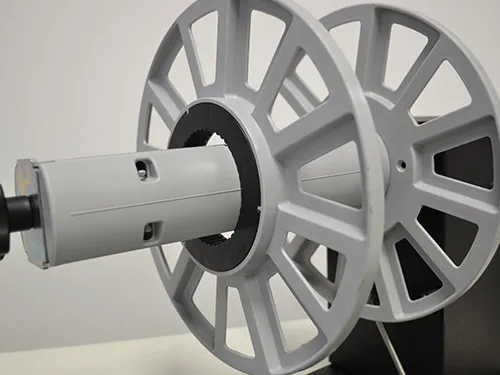

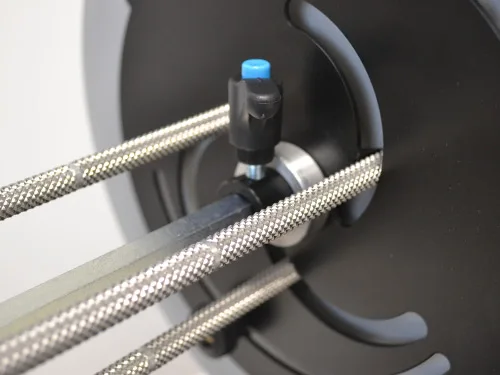

Adjustable Core Holder
from 1.57" (40mm) up to 4.64" (118mm)
Roll Diameter up to 10" (250mm)
Label Width up to 6.85" (174mm)
Adjustable Core Holder
from 1.57" (40mm) up to 4.64" (118mm)

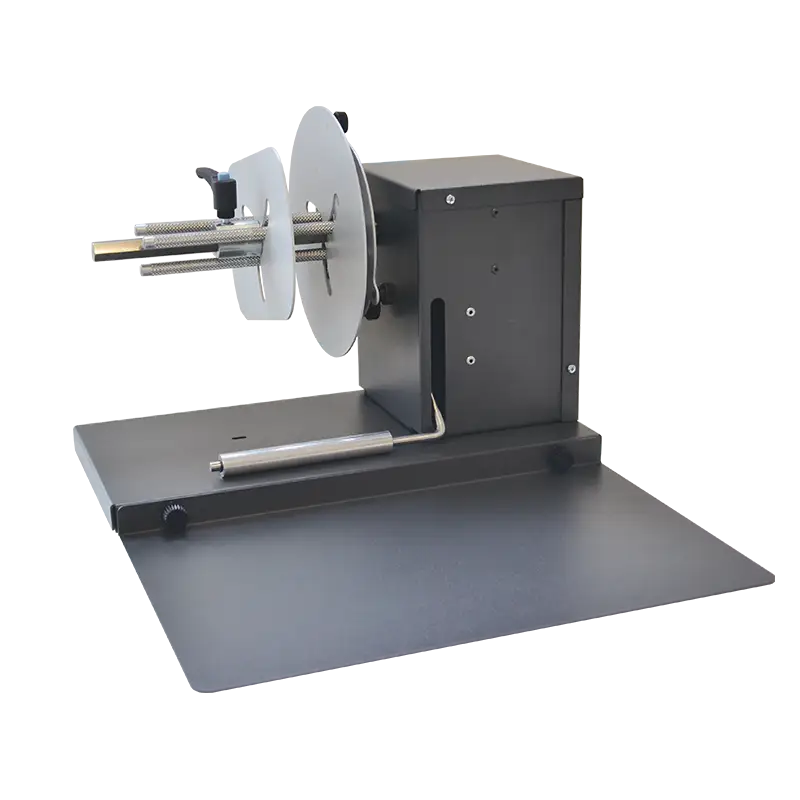

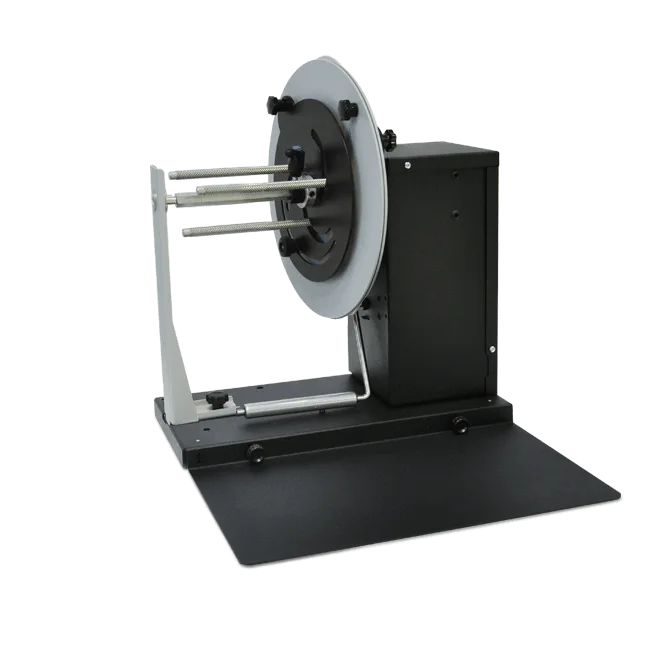

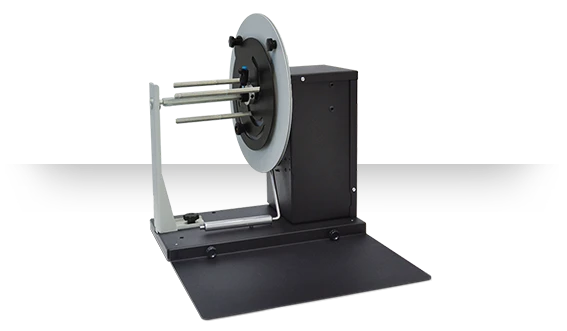

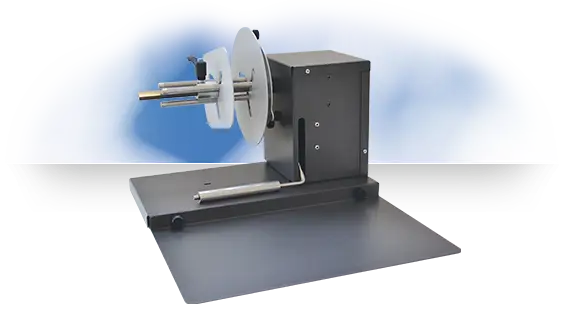

SRA AD2111-S2
ASS1111-S0 ASD1111-S0
Roll Diameter up to 6.7" (170mm)
Label Width up to 4.72" (120mm)
Adjustable Core Holder
from 1.57" (40mm) up to 3" (76mm)
Roll Diameter up to 11.81" (300mm)
Label Width up to 5" (127mm)
Adjustable Core Holder
from 1.81" (46mm) up to 4.64" (118mm)
Support for heavy rolls
