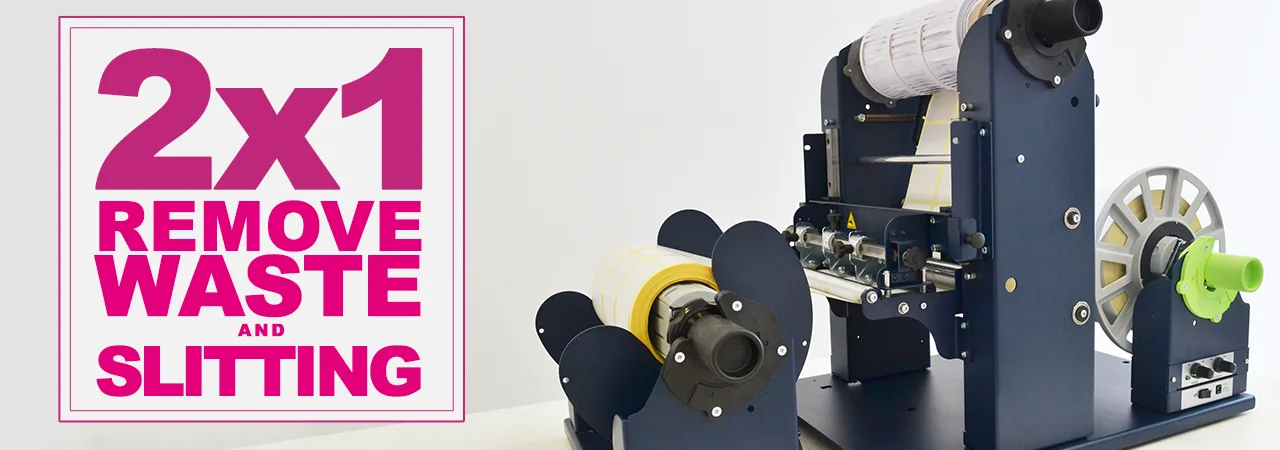

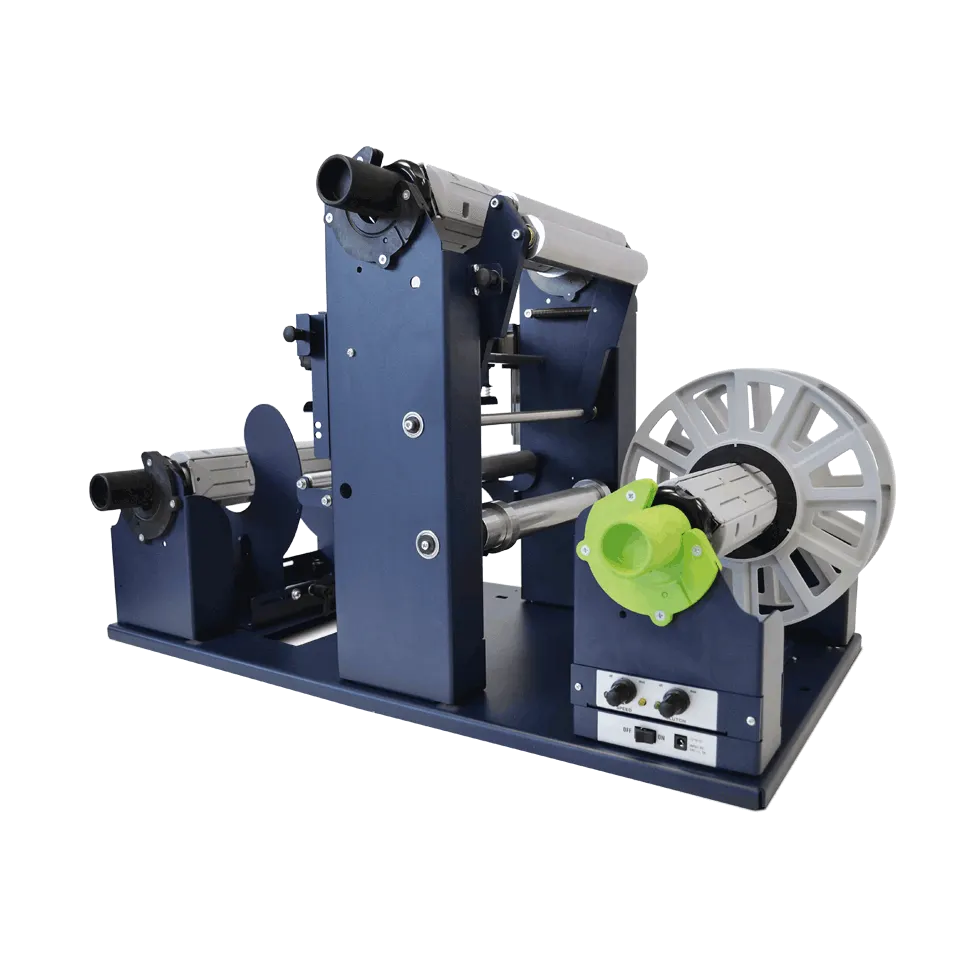

Matrix remover and slitter

matrix remover and slitter

FEATURES

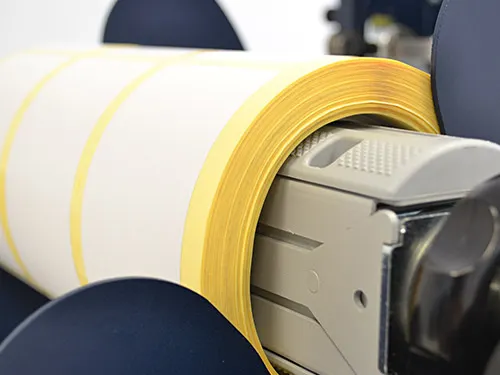

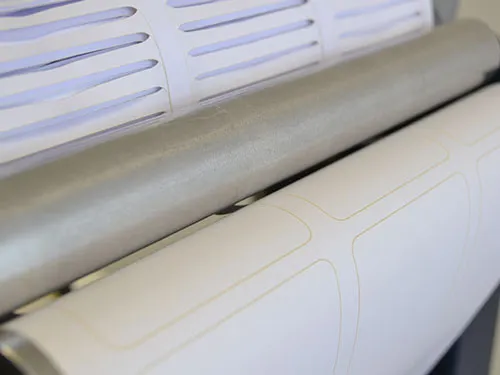

The matrix removers give the user the ability to remove the waste material from printed or blank pre die-cut rolls of labels up to 8.86” (225mm) wide onto 3” cardboard core and having an outside diameter up to 9.84” (250mm). The finished labels will be rewinded face out only.

Perfect full bleed labels can be achieved on pre die cut media after the waste material is removed.

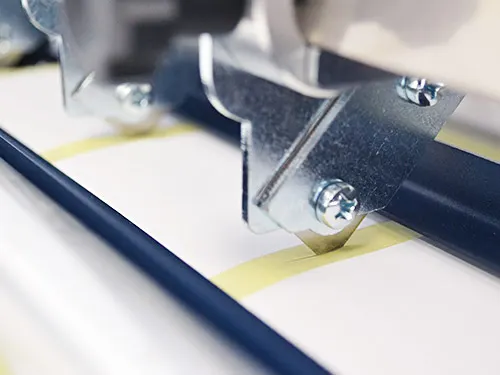

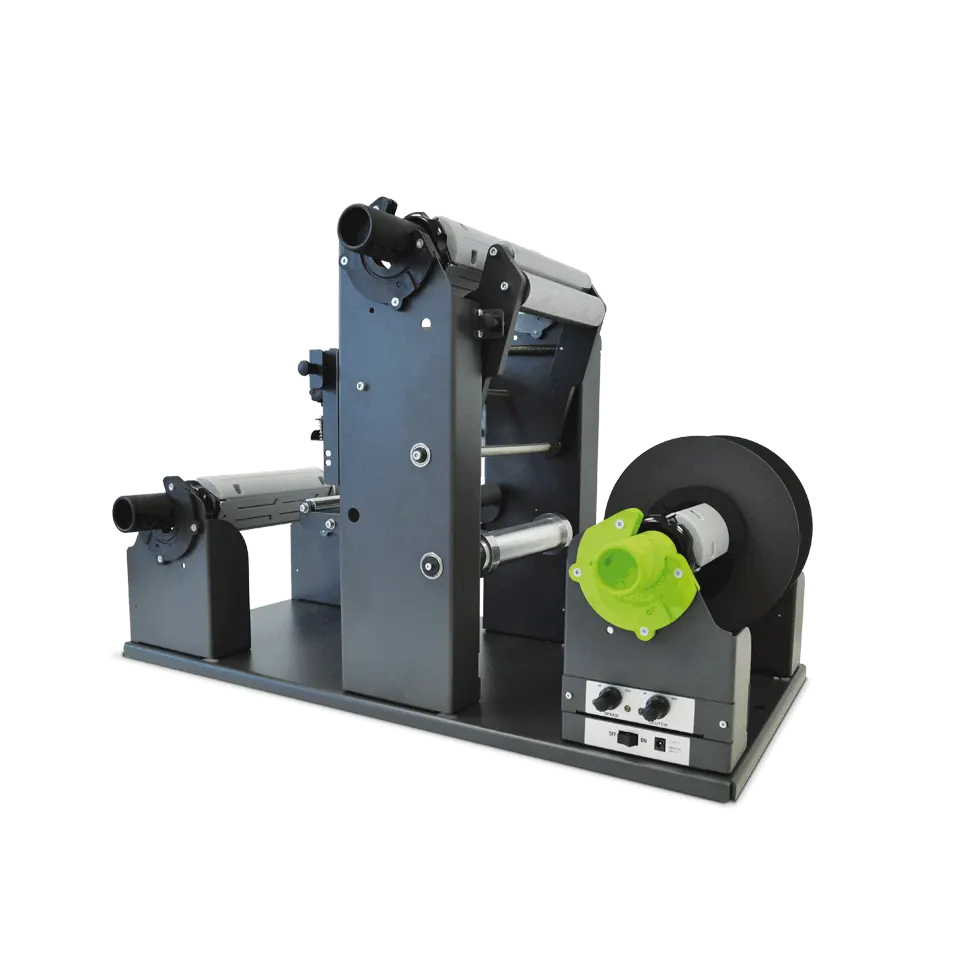

Available in three versions, the narrower MCH100MTX17 allows media width up to 6.69” (170mm), the MCH100MTX25 can handle media up to 8.86” (225mm) while the MCH100MTX35 up to 13.77" (350mm). Both units include the slitter module.



The production of edge-to-edge printed labels on roll will become extremely easy and quick.

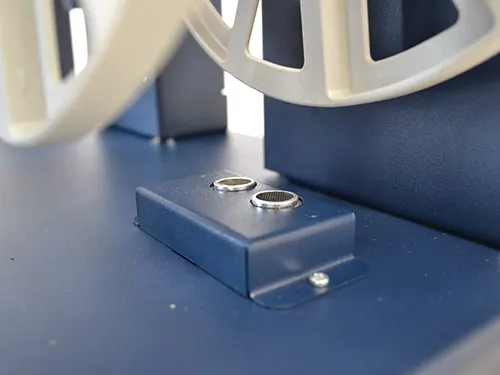

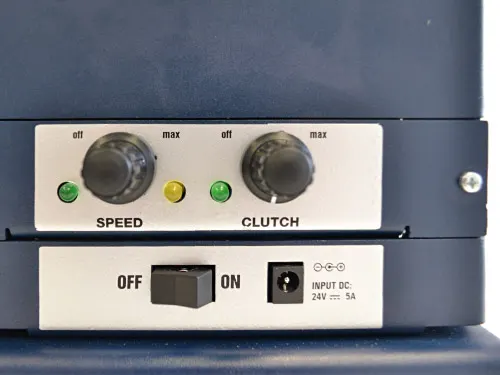

The unit is equipped with an electronic clutch system that allows the user to set manually the main media tension depending on pre die-cut label’s path complexity and type of media. During the operation the ultrasonic sensors together with the electronic controls will make sure to keep constant the tension on the media despite the roll diameter variation.


Brochure | User Manual MCH100MTX17 | User Manual MCH100MTX25 | User Manual MCH100MTX35 | Shop Now |

Workflow optimization

Time Free is the the main benefit of this Matrix Remover & Slitter. Being an offline solution where load the printed pre die-cut roll, each job will be completed without any interruption which could have occurred during the printing process in case it was in-line with the printer.



Compatible Printers

matrix remover and slitter

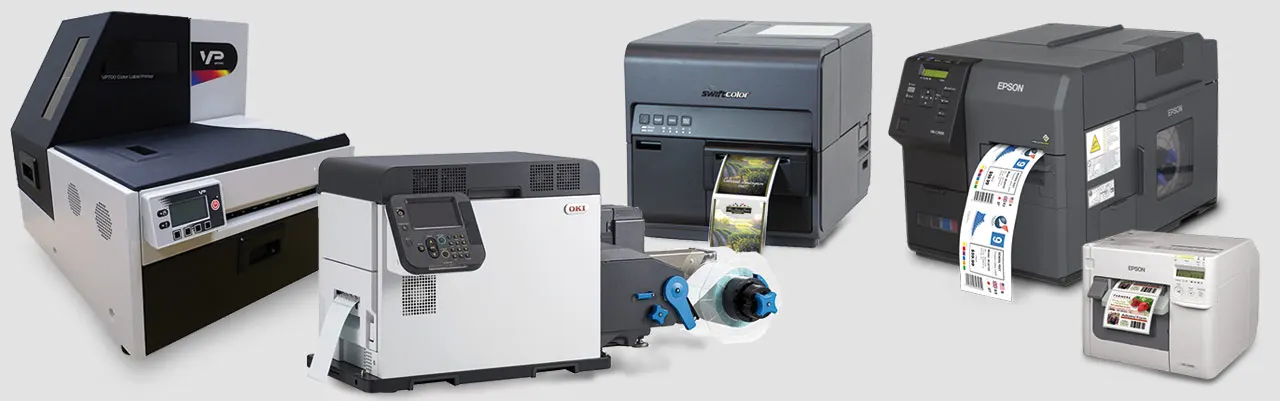

Here some printer models compatible with the new version of the matrix:
βœ” OKI Pro1040 / Pro1050
βœ” Swiftcolor SCL4000D / SCL4000P
βœ” Epson C3500 / C7500 / C6500 / ...
βœ” VipColor VP750 / VP600 / ...
βœ” ...





M O D E L S
  MCH100MTX35 MCH100MTX25 MCH100MTX17
  MCH100MTX35 MCH100MTX25 MCH100MTX17
Input / Output Roll Diameter 10” (250mm) 10” (250mm) 7.87” (200mm)
Maximum media width 13.77" (350mm) 8.86” (225mm) 6.69” (170mm)
Minimum slitting width 0.75” (19mm) 0.75” (19mm) 0.75” (19mm)
Number of slitting blades up to 12
(6 blades included)
up to 8
(4 blades included)
up to 6
(3 blades included)
Slitter module yes yes yes
Roll core size 3” (76 mm)
Agency Certifications CE, RoHS


SIZE
MODELS LENGTH WIDTH HEIGHT
MCH100MTX35 35.03" (89cm) 25.59" (65cm) 21.25" (54cm)
MCH100MTX25 35.03" (89cm) 19.68" (50cm) 21.25" (54cm)
MCH100MTX17 31.10" (79cm) 17.71" (45cm) 20.86" (53cm)

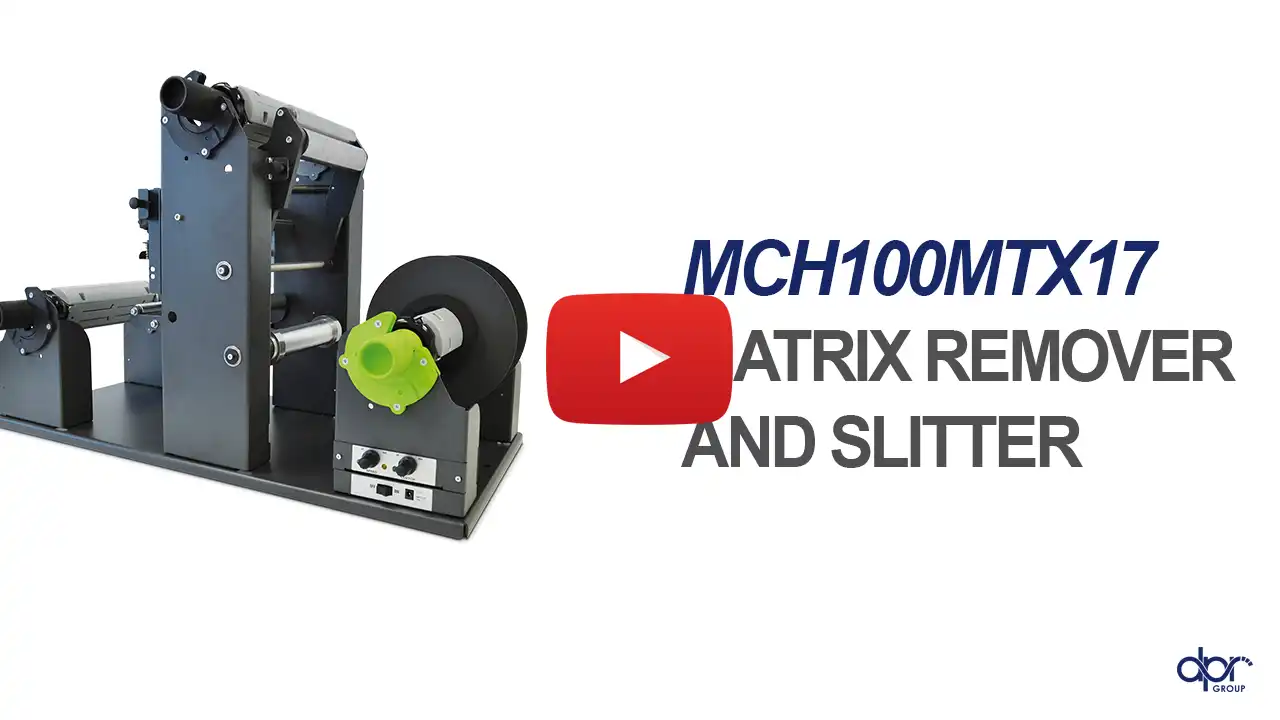

VIDEO









GALLERY


  • matrix remover and slitter detail
  • matrix remover and slitter detail
  • matrix remover and slitter detail
  • matrix remover and slitter detail
  • matrix remover and slitter detail
  • matrix remover and slitter detail
