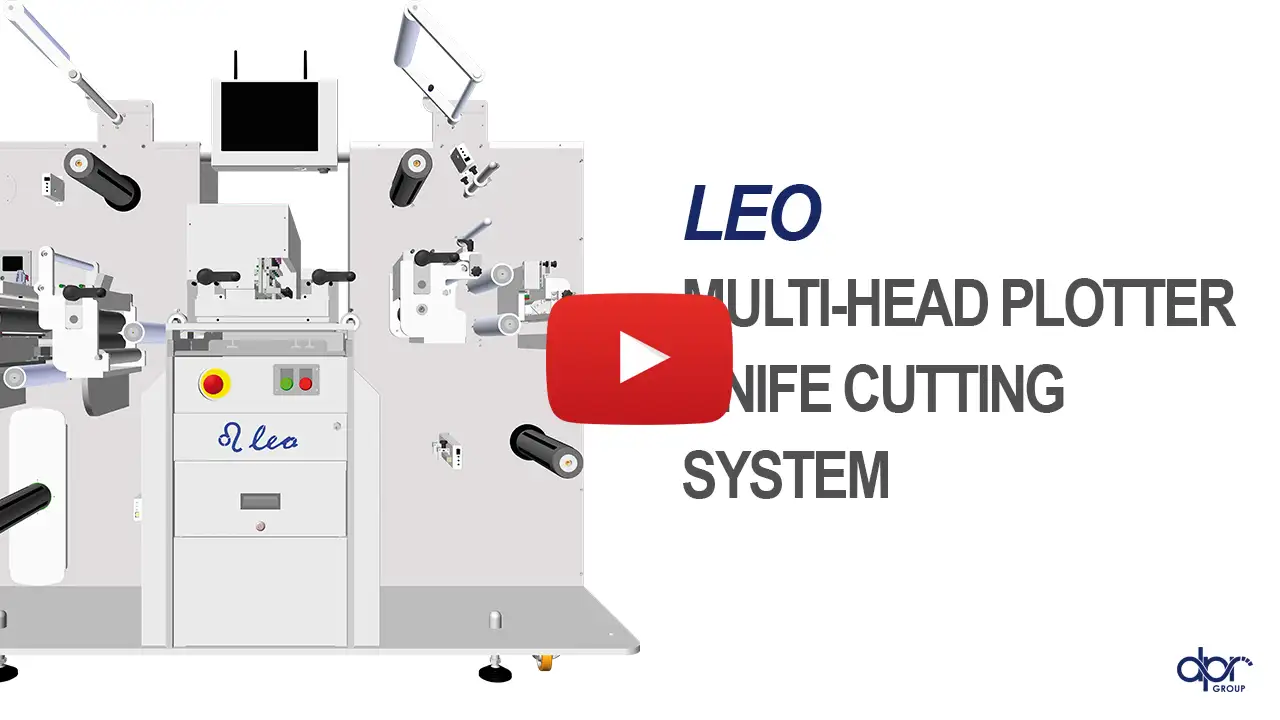

LEO - Multi-Head plotter knife cutting system

FEATURES

Designed for the most demanding digital label finishing workflows, this multi-head blade cutting system delivers unmatched flexibility, speed, and precision.

Engineered with modularity and scalability in mind, this advanced unit uses multiple independent plotting heads to perform complex contour cuts without the need for traditional dies—making it ideal for short to medium runs, frequent job changes, and personalized or variable designs.

Whether you're cutting paper, PET, PP, or specialty films, this system brings next-generation automation and accuracy into your production line—enhancing output, reducing costs, and shortening turnaround times.

Brochure |

Why choose our multi-head plotter cutting system LEO

✔ Adaptability to Various Substrates

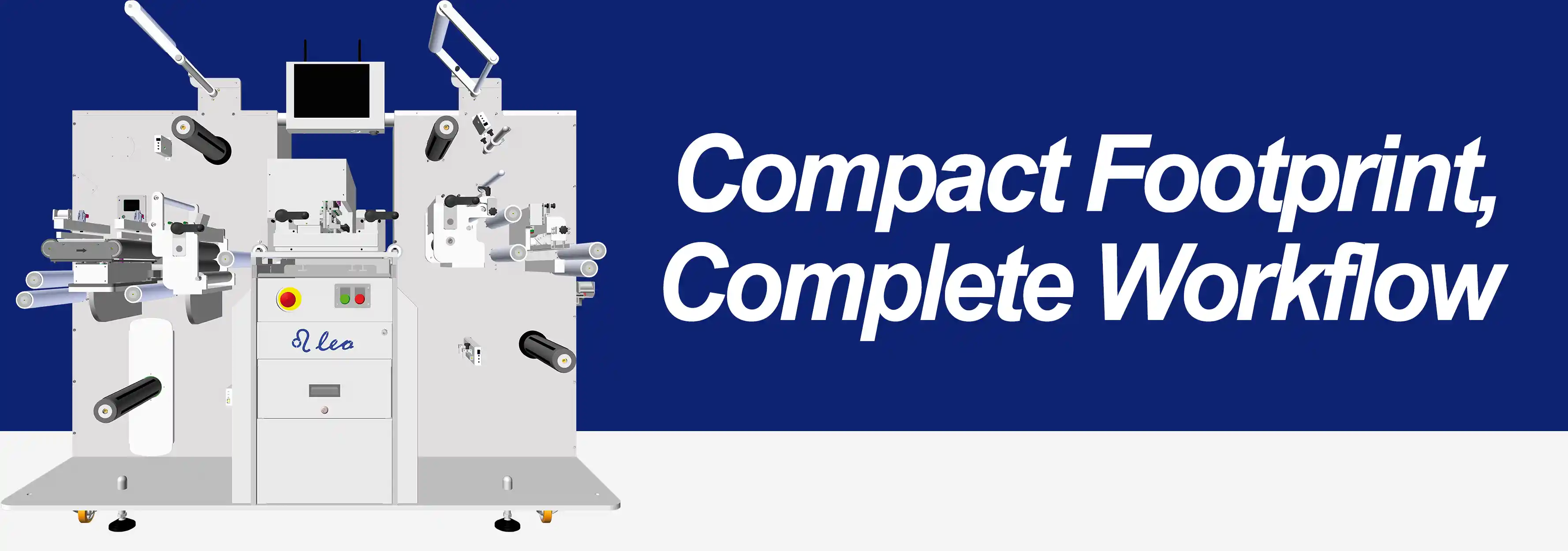

✔ Compact Footprint, Complete Workflow
✔ Cost-Effective for Short Runs
✔ No Dies Required
✔ High-Speed Productivity
✔ Precision Cutting
✔ Reduced Downtime

S P E C I F I C S
	LEO35PL
Input roll diameter	19.68" (500mm)
Finished Roll Diameter	11.81" (300mm)
Web Width	up to 13.78" (350mm)
Maximum Cutting Width	13" (330mm)
Maximum Label Length	19.68" (500mm)

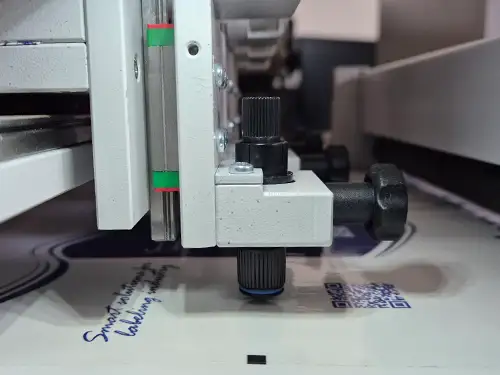

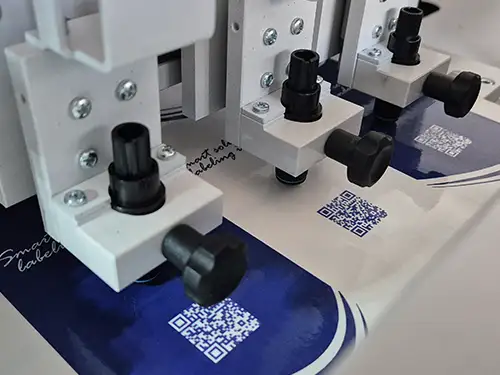

Cutting Technology	4 heads drag knife plotter

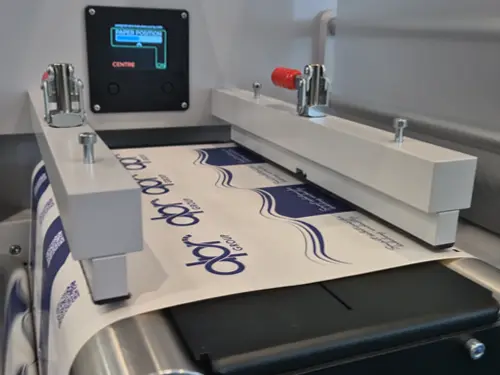

Registration Sensor / Mark	Laser / 0.16" x 0.16" (4mm x 4mm)
Laminate / Laminate Liner Rewinder	Included / Optional
Second Rewinding Shaft	Optional
Cut Ability	Printed and unprinted
Media Type Allowed	Paper and films
Roll core size	Mechanical 3" (76mm) fixed
Minimum Slitting Width	0.75" (19mm)
Number of slitting blades	up to 8
Power Requirements	100-240V~1Kw, 50/60Hz

Brochure

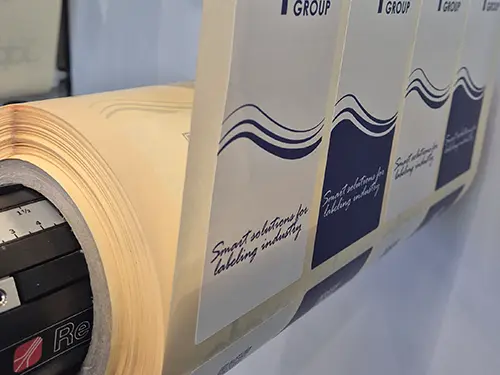

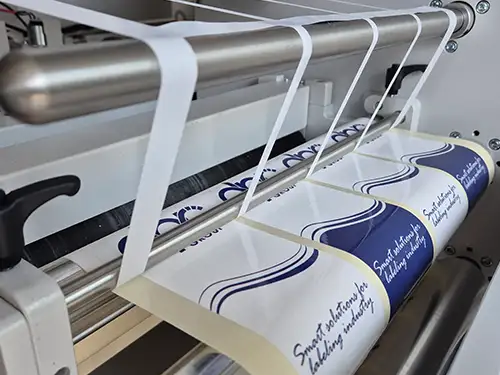

In a single pass LEO is capable of laminating, die cutting, waste removal, slitting and rewinding finished labels onto new rolls that are ready for application.

Type of cut: Kiss-cut

No material limitless
