Roll to Roll System for Swiftcolor SCL-4000D
FEATURES

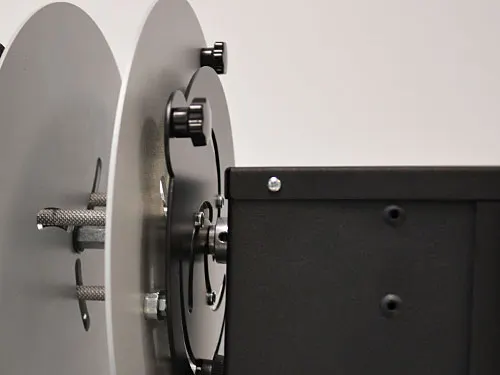

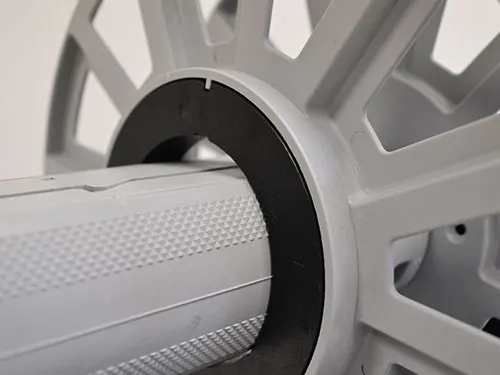

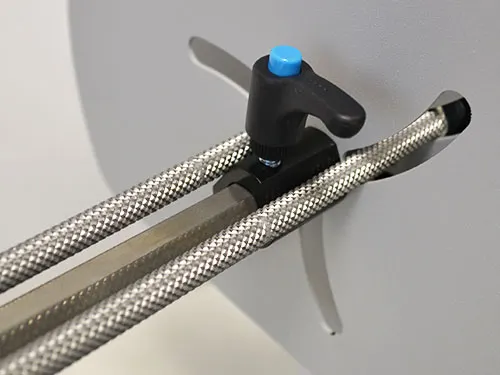

The rewinder and unwinder for Swiftcolor SCL-4000D printers are used to manage rolls of media up to 5" (127mm), while having an outside diameter up to 10" (250mm). The user can select among the adjustable core holder from 1.57" (40mm) up to 3" (76mm).
An external power supply 100/240VAC - 2.5A at 24V
allows an electronic circuit to provide, through the tension arm, the adjustment of the rotation’s speed and rotation’s direction.
The rewinder and unwinder for Swiftcolor SCL-4000D printers have two types of speed adjustments, through the two buttons it is possible to set the maximum speed required while the tension arm will auto adjust the speed from zero to the set value.

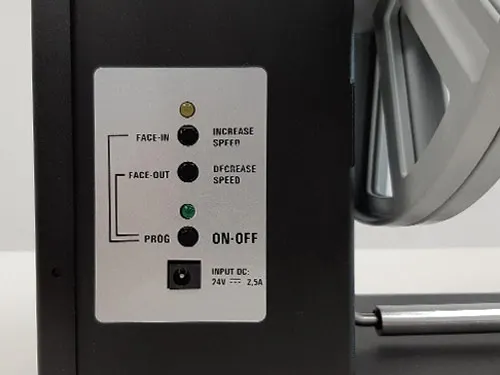

The control panel allows to set the label rewinding face-in or face-out option. When the roll runs out, the devices stop beeping.

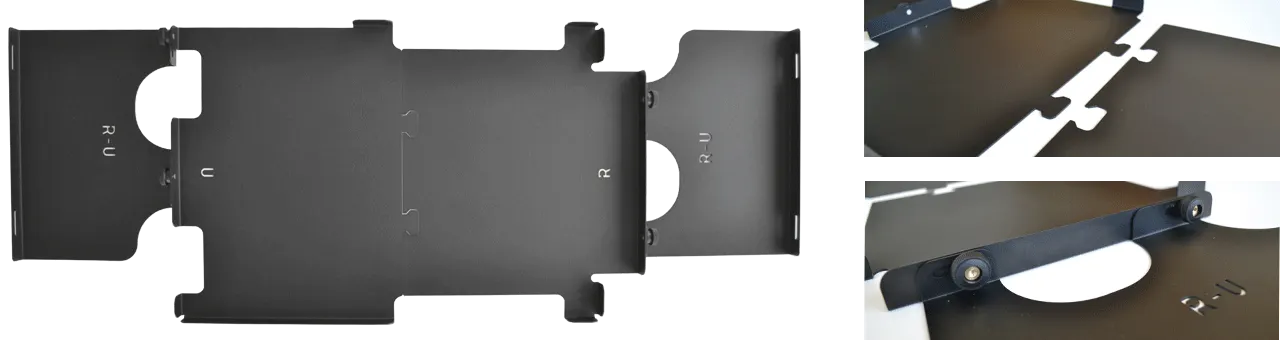

Printer plate

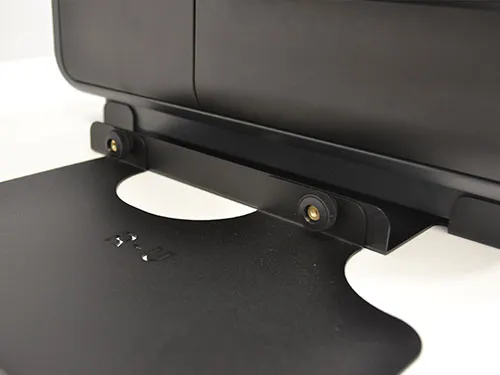

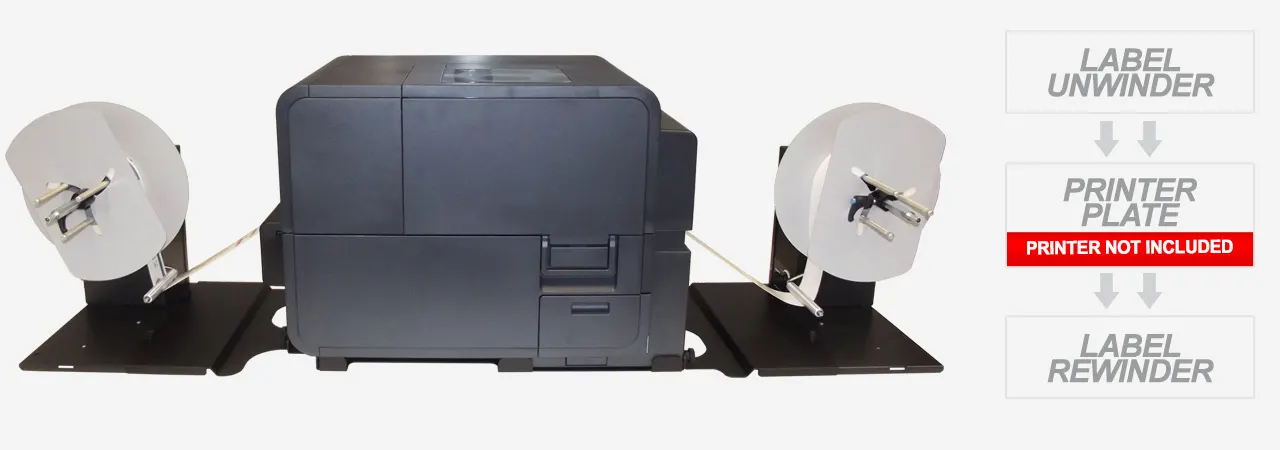

To guarantee the media path aligned in the system, it is available the junction plate to connect the rewinder and unwinder together and where lean the SwiftColor printer.
Two slots allow you to perfectly align the printer with the unwinder and the rewinder.
Brochure
| ASS1111-S0 | ASD1111-S0 |
|---|---|
 |
 |

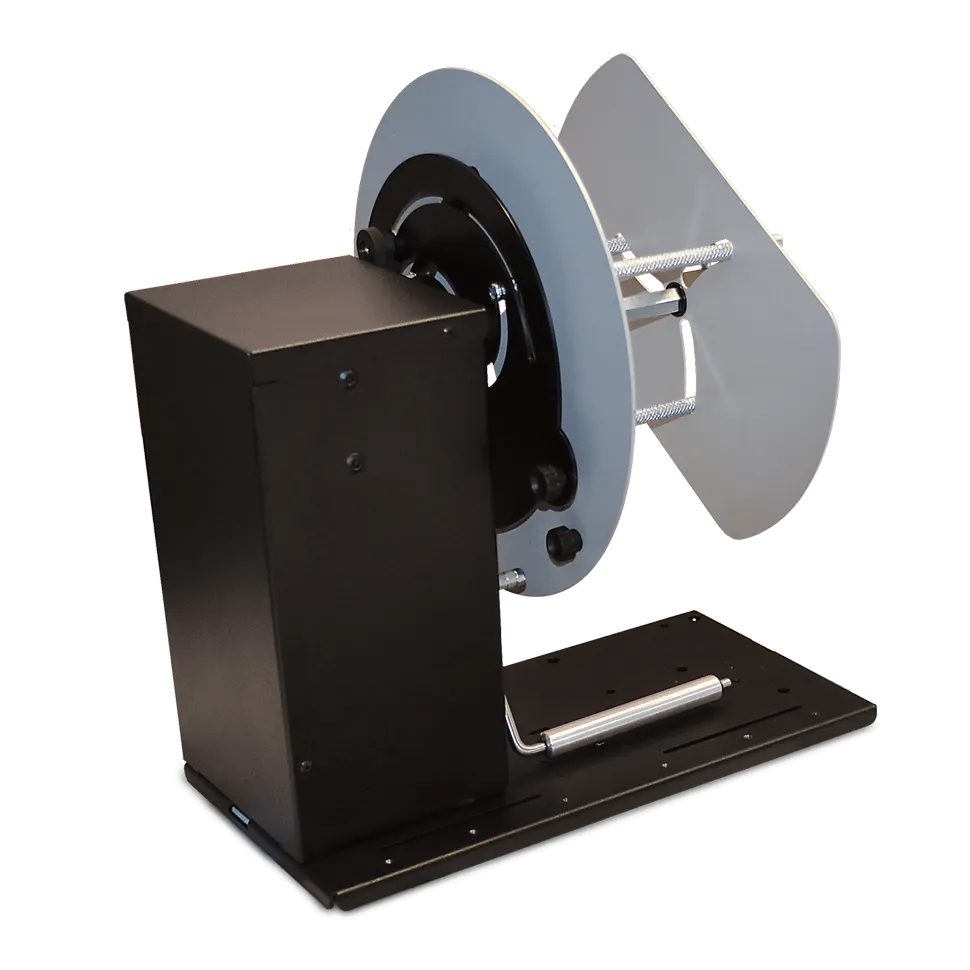

| Label unwinder with 1.57" (40mm) up to 3" (76mm) adjustable core holder |

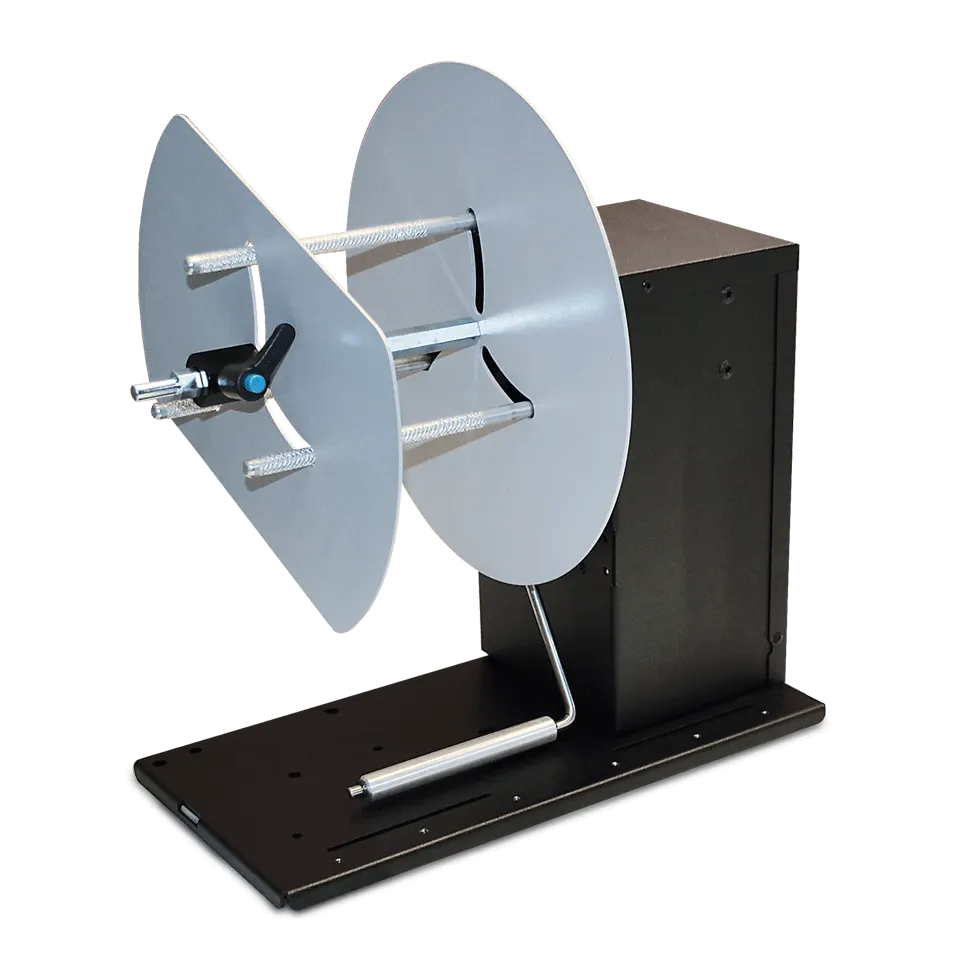

Label rewinder with 1.57" (40mm) up to 3" (76mm) adjustable core holder |
| MODELS | LENGTH | WIDTH | HEIGHT |
|---|---|---|---|
| All models (second plate included) |
19.93" (43cm) | 13.78" (35cm) | 14.17" (36cm) |
| Printer Plate (SCL-JPL ) |
37.79" (96cm) | 14.17" (36cm) | / |
