FEATURES

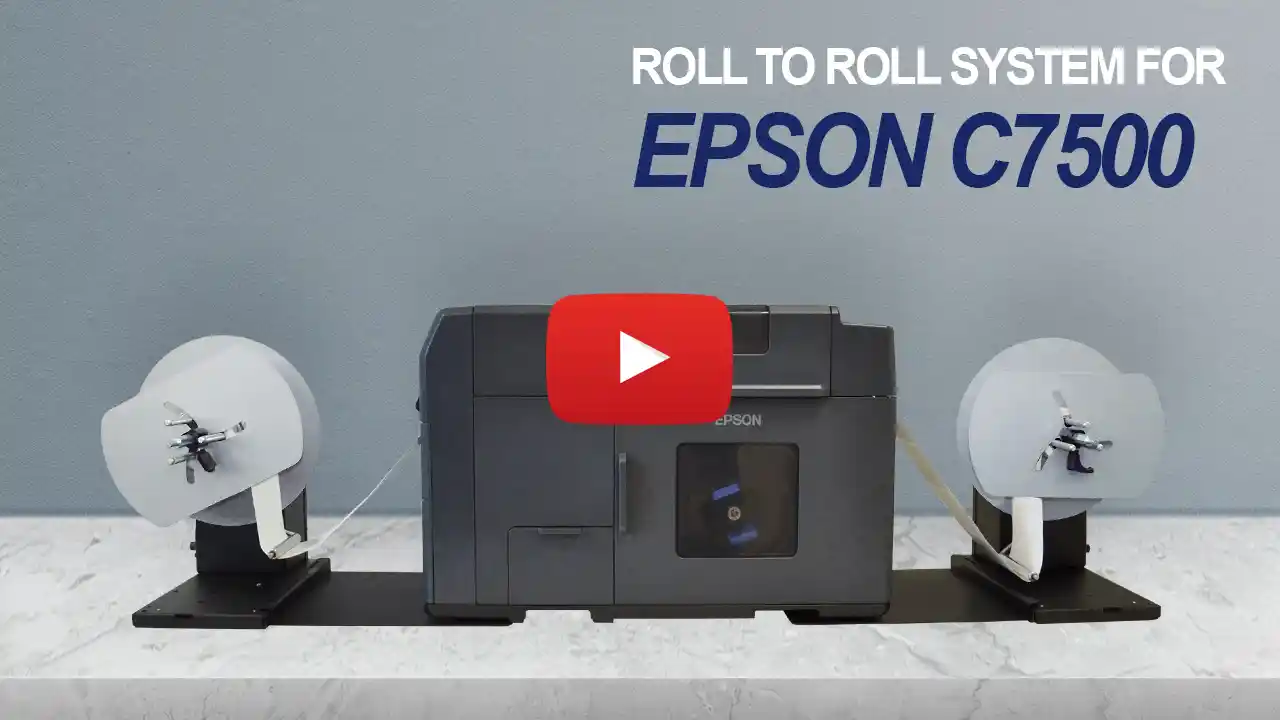

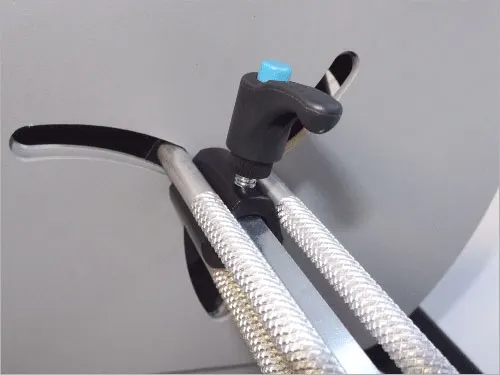

The rewinder and unwinder for Epson C7500 printer are used to manage rolls of media up to 5" (127mm) having an outside diameter up to 10" (254mm). Units are equipped with adjustable core holder 1.57" (40mm) - 4.64" (118mm).

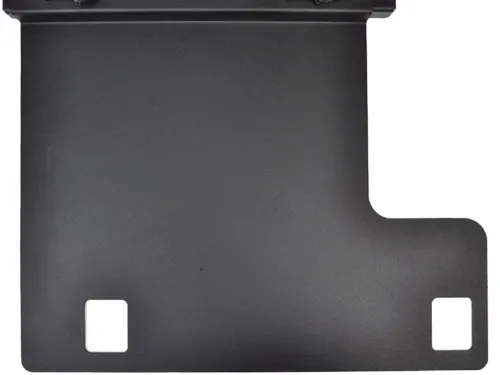

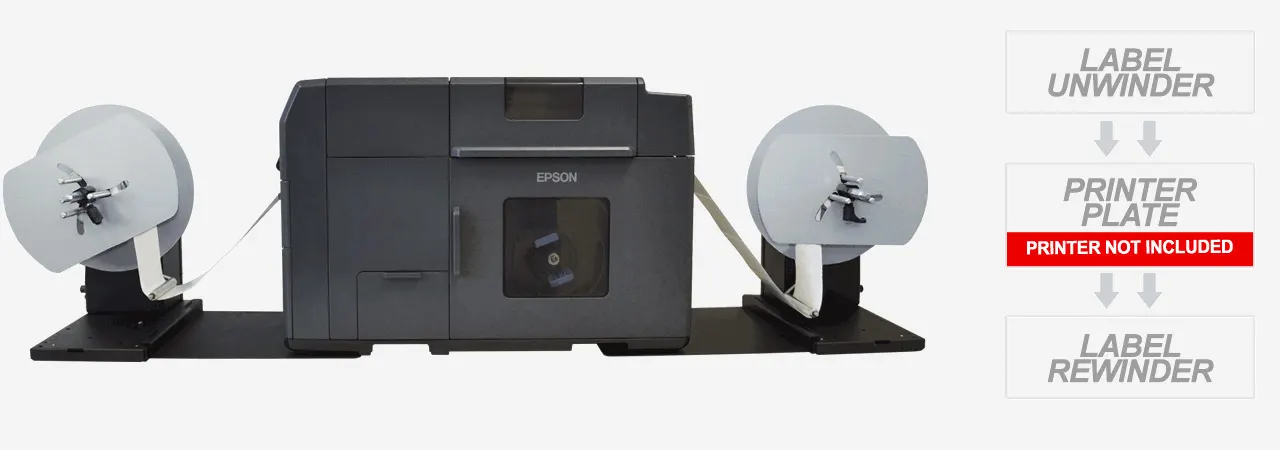

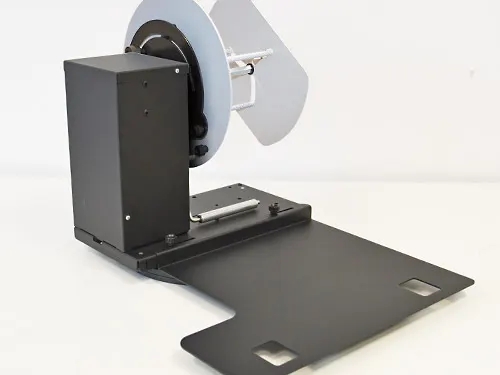

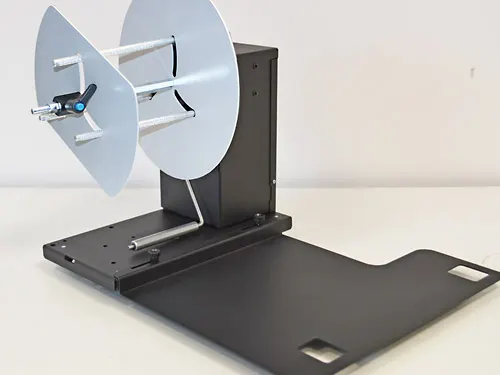

To guarantee an aligned media path in the system, it is available the junction plate to connect the rewinder and unwinder together. It offers also a customized sliding support where lean and fix the Epson printer.

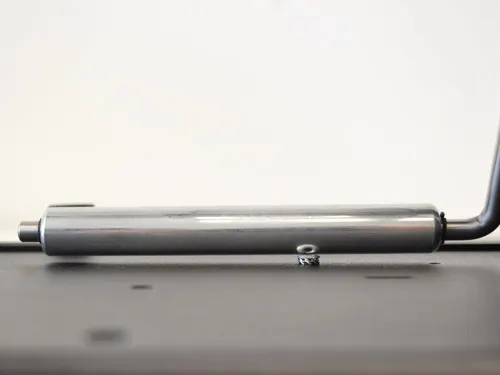

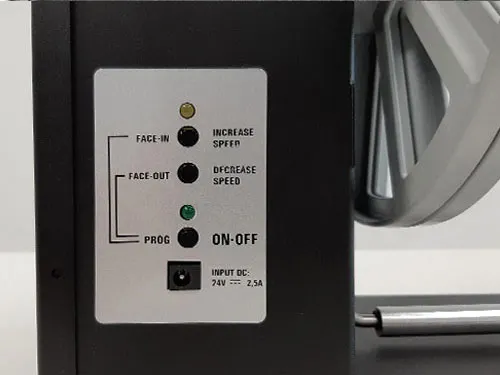

An external power supply 100/240VAC - 2.5A at 24V allows an electronic circuit to provide, through the tension arm, the adjustment of the rotation’s speed and rotation’s direction. A 2A fuse is used as protection.





Matrix remover for Epson C7500
- It works in-line with the printer -


matrix remover epson C7500

Designed as an in-line option, the matrix remover for the Epson C7500 is an all-in-one system capable of removing the excess label material around each pre die cut label, and rewinding.

By printing on die cut label rolls with the matrix intact, you can be assured that your labels are completely printed, edge-to-edge.

A quick and easy to maximize your printing uptime. Electronic and mechanical features: an external power supply 100/240VAC - 5A at 24V allows an electronic circuit to provide, through the sensor, the adjustment of the rotationspeed. A 2A fuse is used as protection.



Brochure

M O D E L S
ASS1111-S0 ASD1111-S0 EPS75-MTX27
ASS1111-S0 ASD1111-S0 Matrix remover C7500

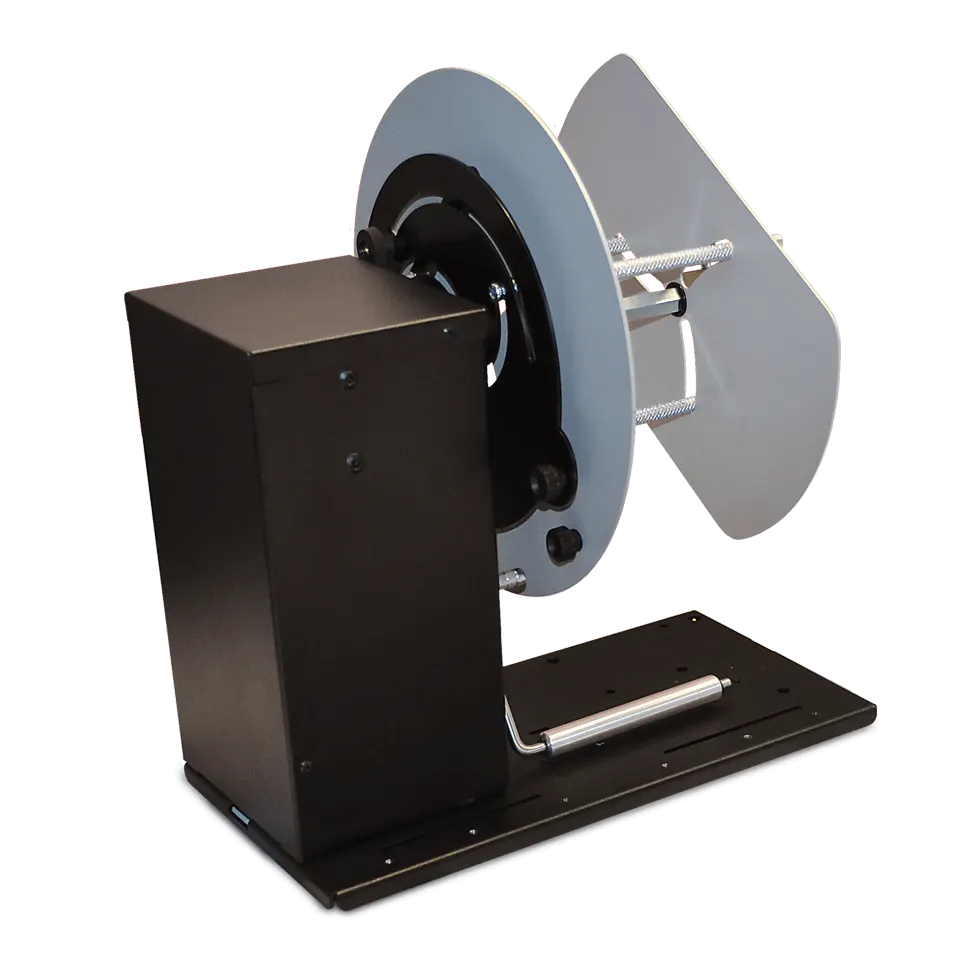

Label unwinder with
1.57" (40mm) up to 4.64" (118mm)
adjustable core holder

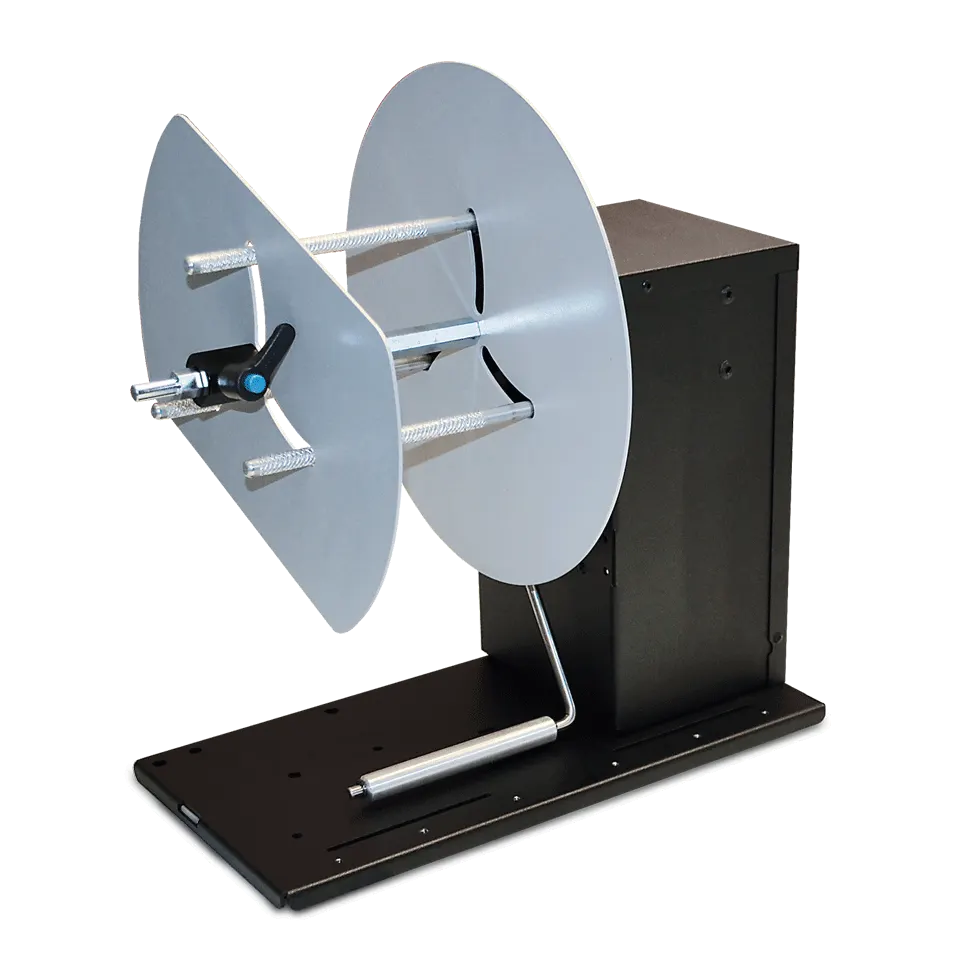

Label rewinder with
1.57" (40mm) up to 4.64" (118mm)
adjustable core holder
3” fixed core holders
Outside roll diameter up to10" (250mm)
Media width up to 5.12" (130mm)
