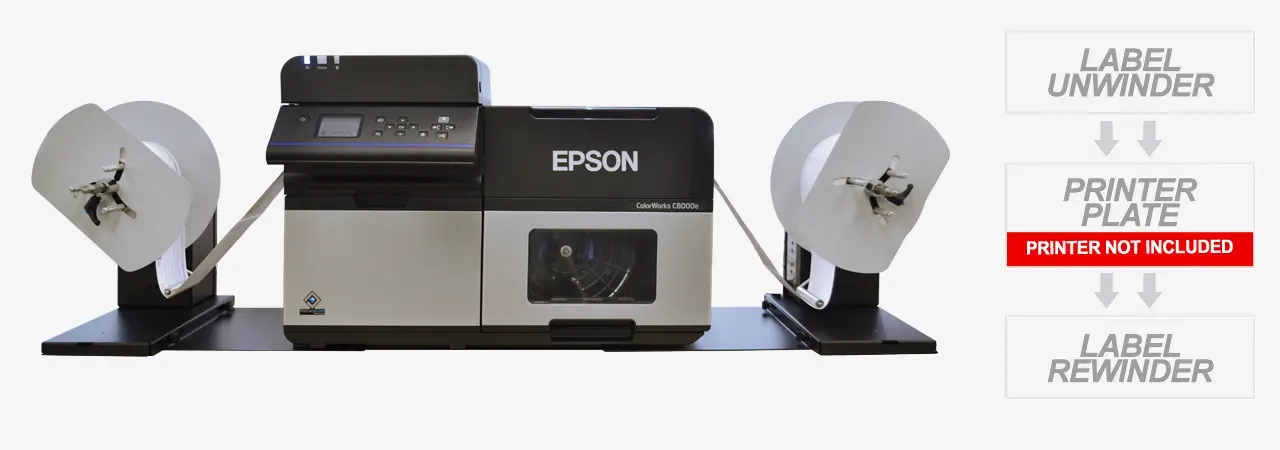

Roll to Roll System for Epson C8000 printer

label unwinder/rewinder for Epson C8000 printers

FEATURES


The rewinder and unwinder for Epson C8000 printer are used to manage rolls of media up to 5" (127mm) having an outside diameter up to 10" (250mm). Units are equipped with adjustable core holder 1.57" (40mm) - 4.64" (118mm).

To guarantee an aligned media path in the system, it is available the junction plate to connect the rewinder and unwinder together. It offers also a customized sliding support where lean and fix the Epson printer.

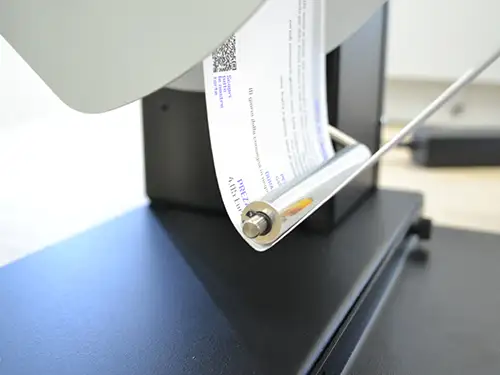

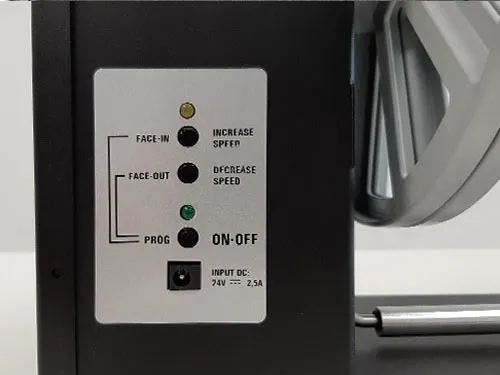

An external power supply 100/240VAC - 2.5A at 24V Direct Current allows an electronic circuit to provide, through the tension arm, the adjustment of the rotation’s speed and rotation’s direction. A 2A fuse is used as protection.



Brochure

M O D E L S
UW8000A RW8000A
ASS1111-S0 label unwinder for epson C8000 ASD1111-S0 label rewinder for epson C8000

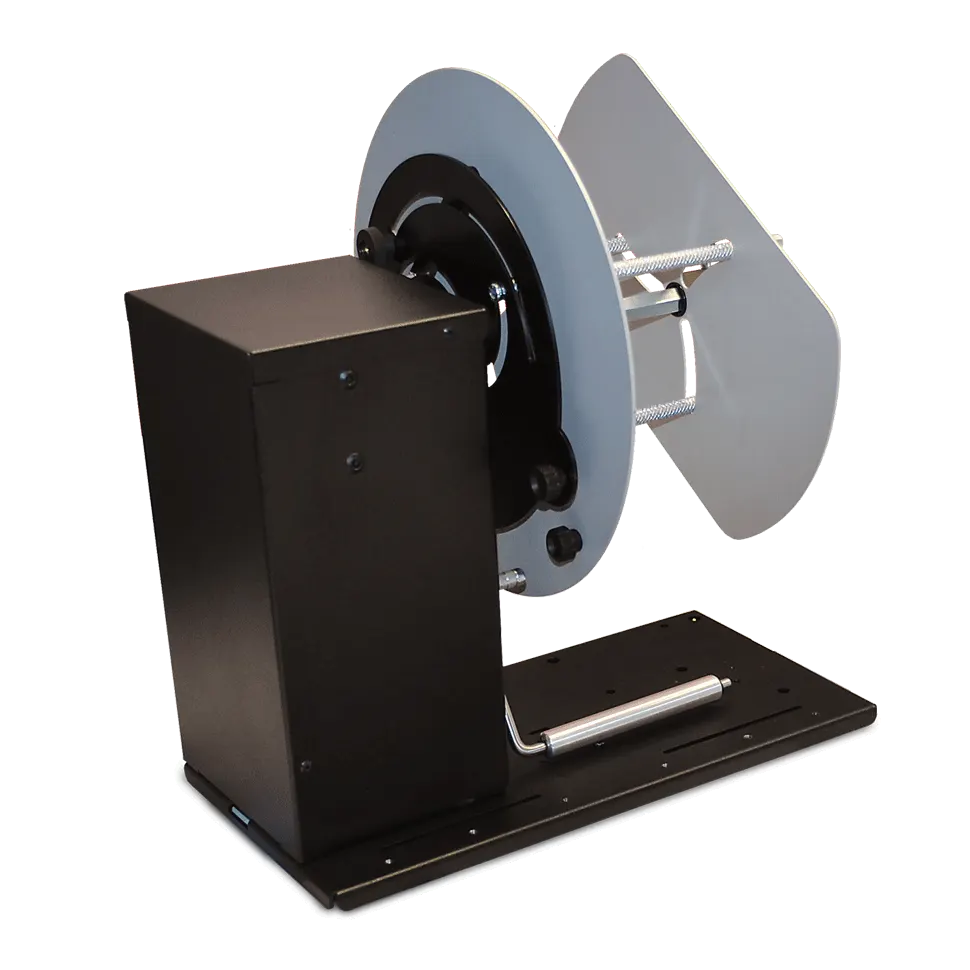

Label unwinder with
1.57" (40mm) up to 4.64" (118mm)
adjustable core holder

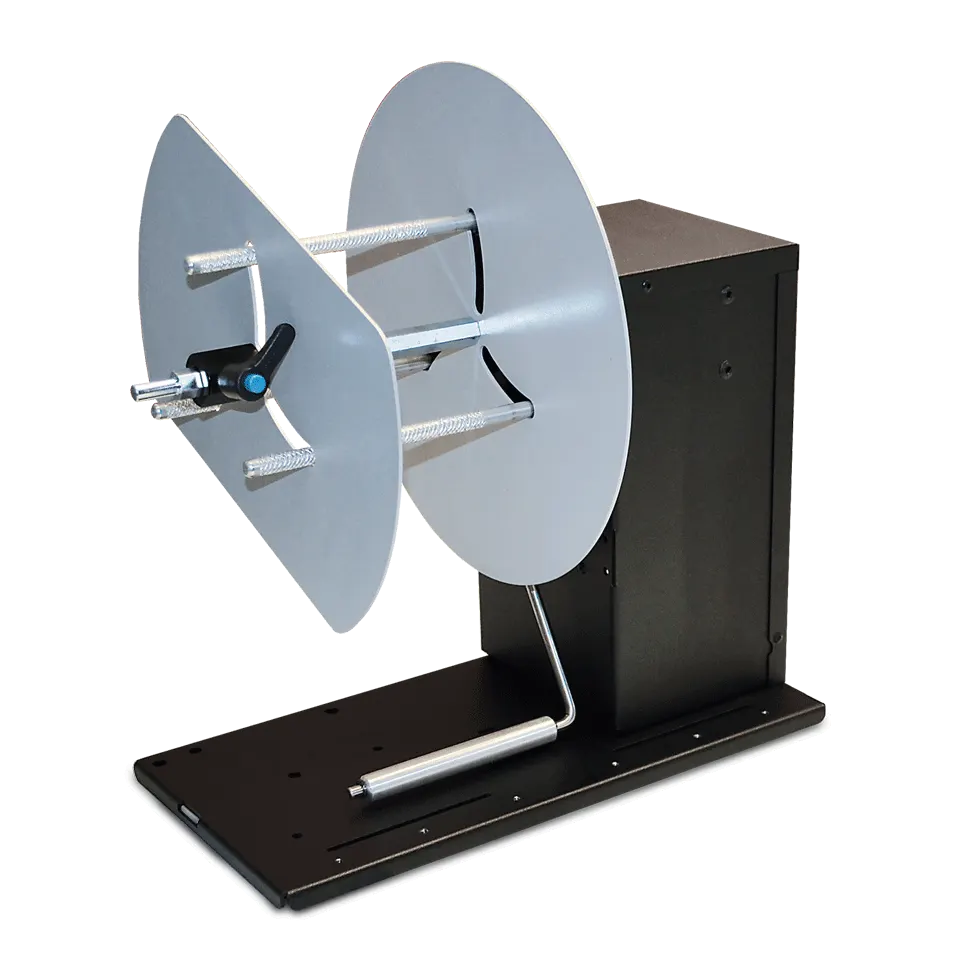

Label rewinder with
1.57" (40mm) up to 4.64" (118mm)
adjustable core holder


SIZE
MODELS LENGTH WIDTH HEIGHT
All models
(second plate included)
19.93" (43cm) 13.78" (35cm) 14.17" (36cm)

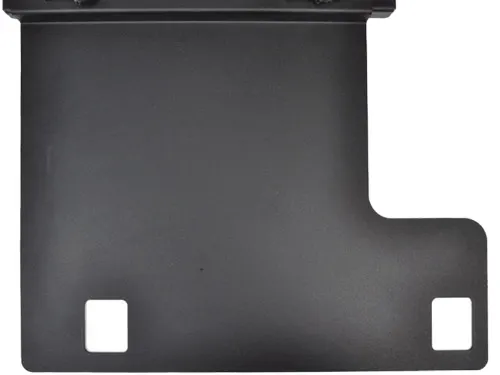

Printer Plate
(EPS80PL-UW / EPS80PL-RW)
11.81" (30cm) 15.74" (40cm) /

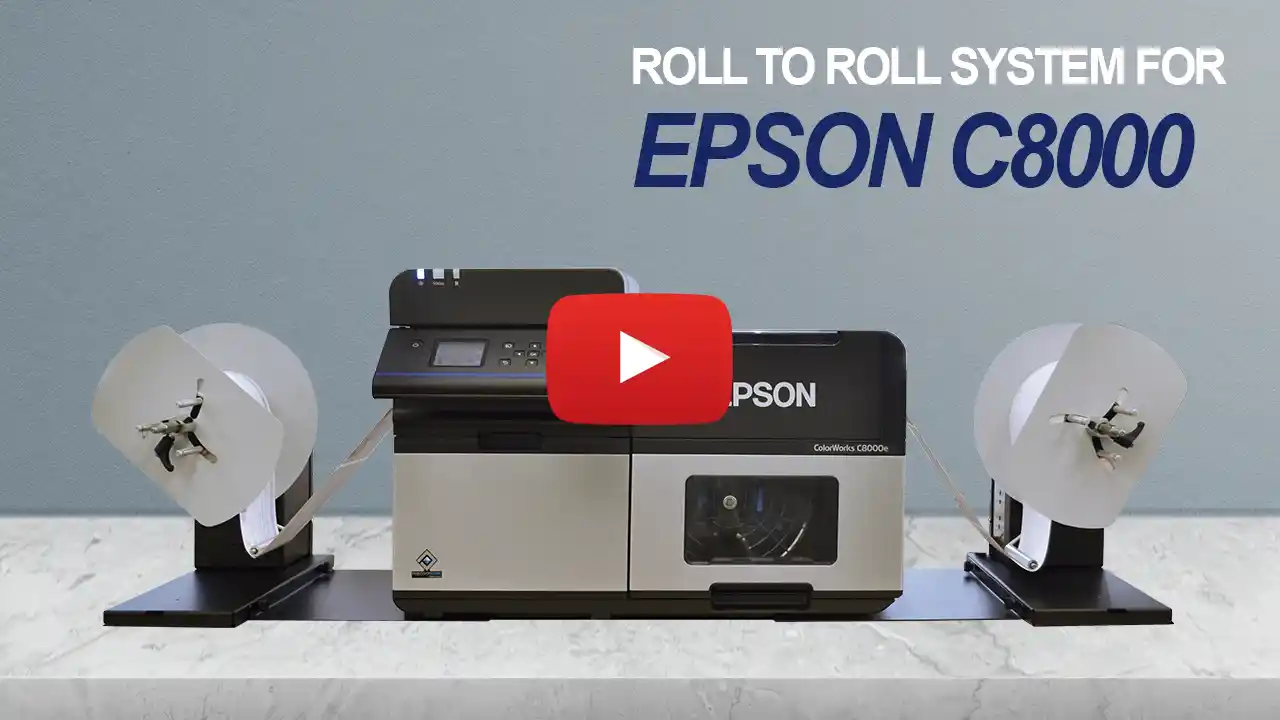

VIDEO




GALLERY

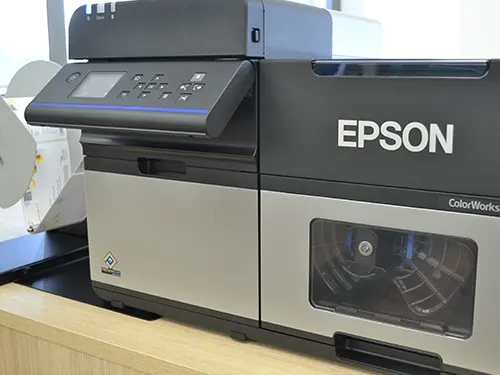

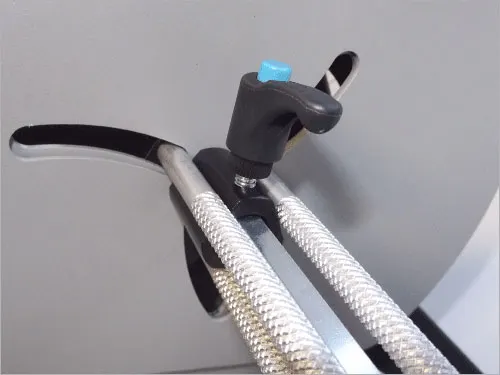

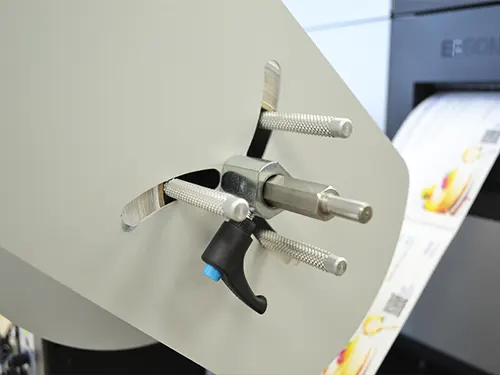

  • label rewinder and label unwinder for epson C8000 printer detail
  • label rewinder and label unwinder for epson C8000 printer detail
  • label rewinder and label unwinder for epson C8000 printer detail
  • label rewinder and label unwinder for epson C8000 printer detail
  • label rewinder and label unwinder for epson C8000 printer detail
  • label rewinder and label unwinder for epson C8000 printer detail
