Roll to Roll System for Epson C6500A Printer
FEATURES

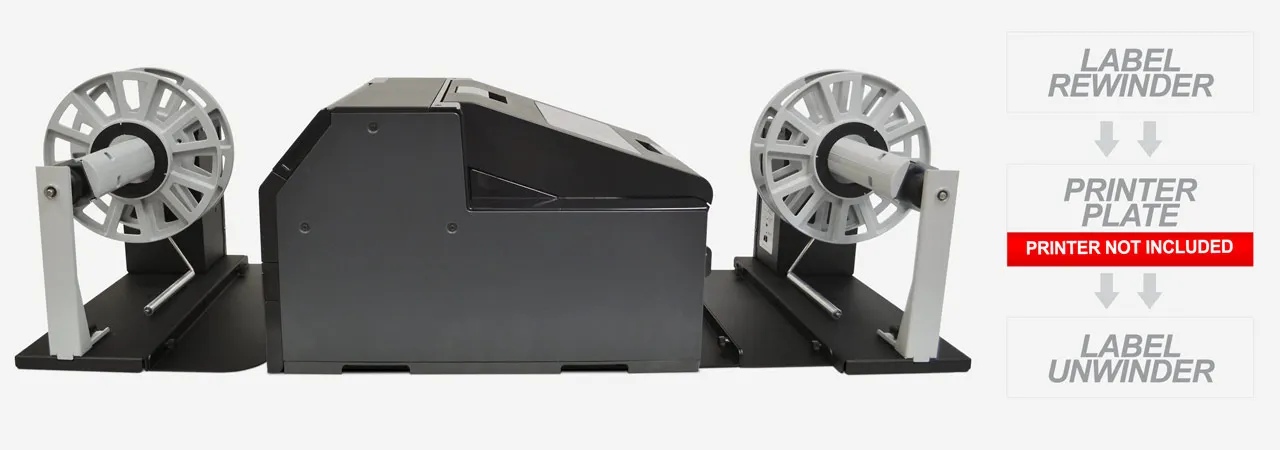

The unwinder and rewinder specifically designed for Epson C6500A color label printer can handle rolls up to 8.66" (220mm) media wide and having an outside diameter up to 10" (250mm). Both Unwinder and Rewinder are equipped with a fixed 3” core holder.

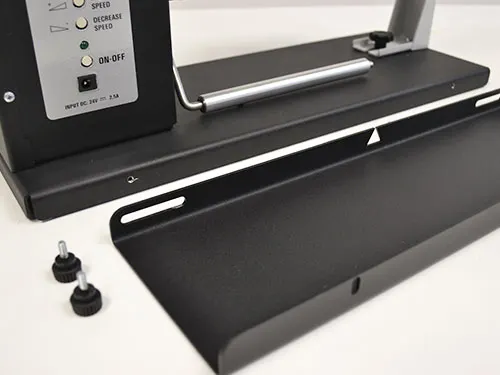

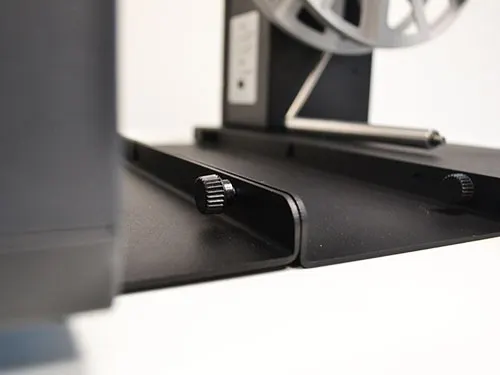

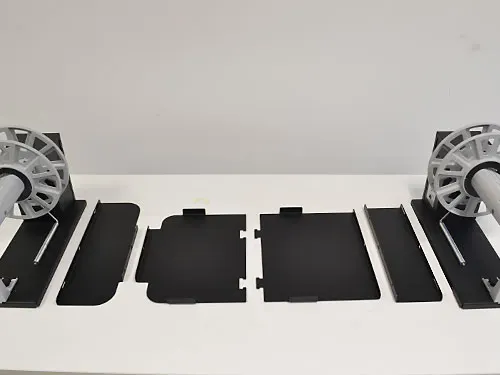

The printer will be locked over the printer plate.
This way the correct unwinding / rewinding operations are guaranteed and units are safely aligned with the printer.

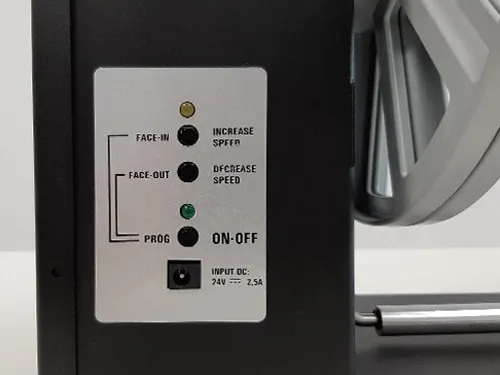

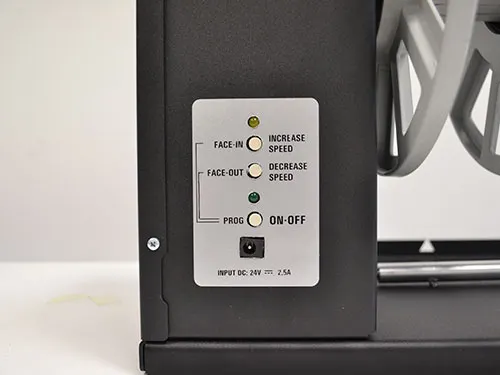

An external power supply 100/240VAC - 2.5A
at 24V allows an electronic circuit to provide, through the tension arm,
the automatic adjustment of the rotation direction and speed
Brochure | User Manual |
| UW6500A | RW6500A |
|---|---|
 |
 |

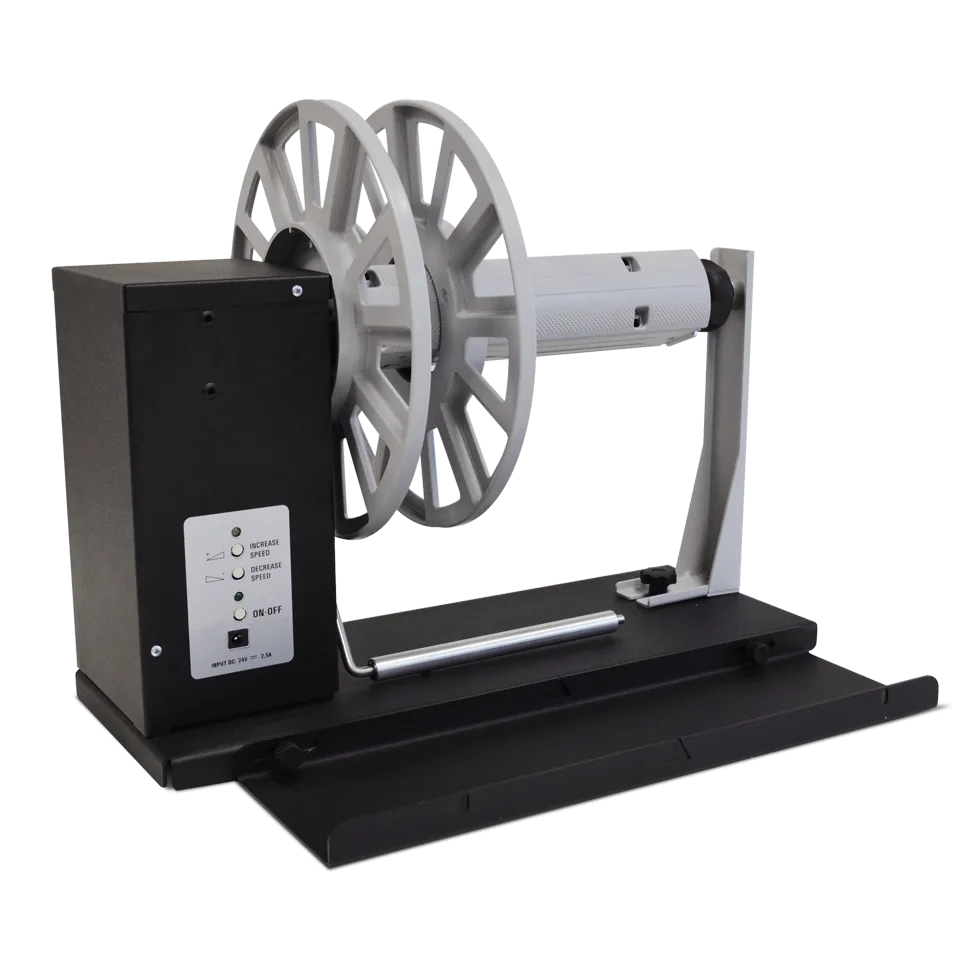

| Label unwinder Roll diameter up to 10" (250mm) Media width up to 8.66" (220mm) 3" fixed core holder |

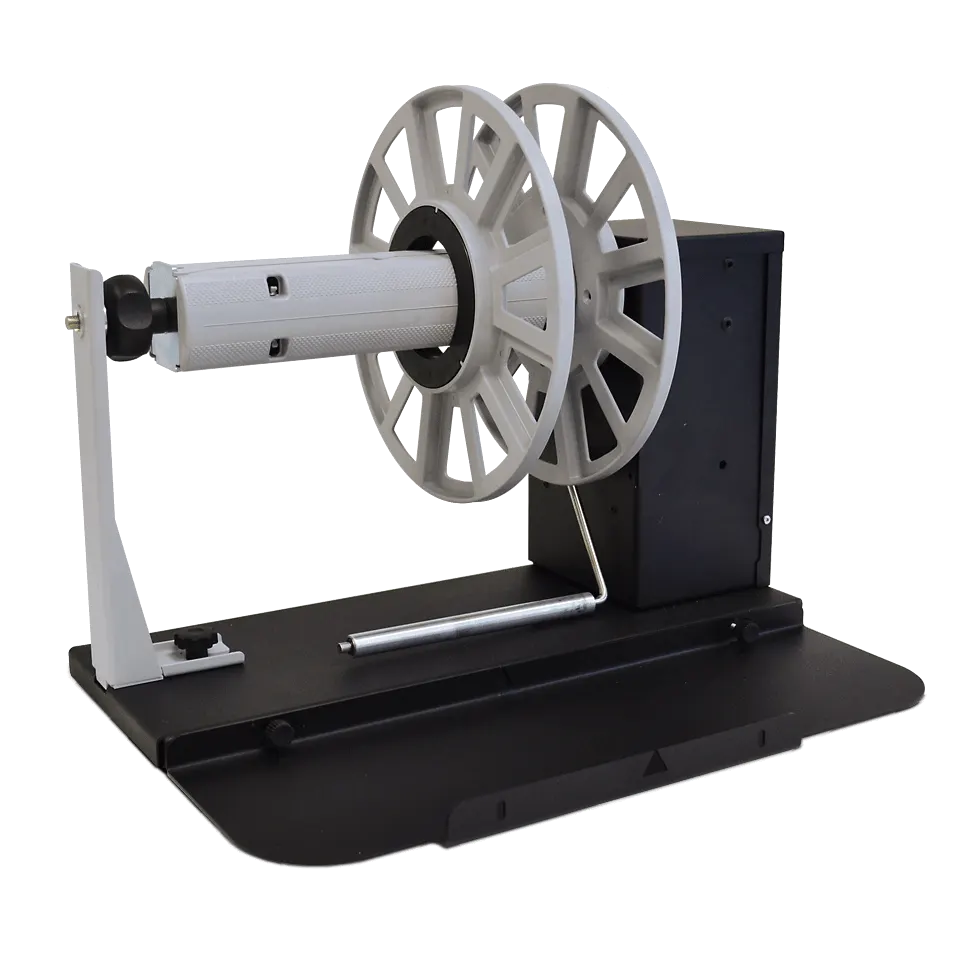

Label rewinder Roll diameter up to 10" (250mm) Media width up to 8.66" (220mm) 3" fixed core holder |
| JPL-6500A |
|---|
 |

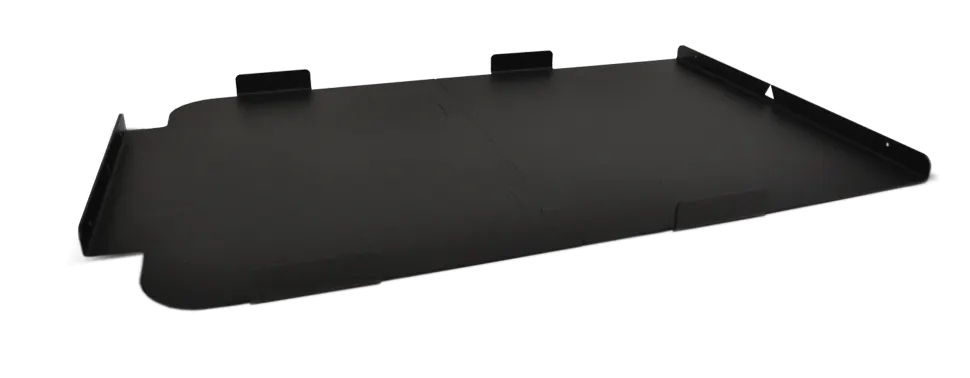

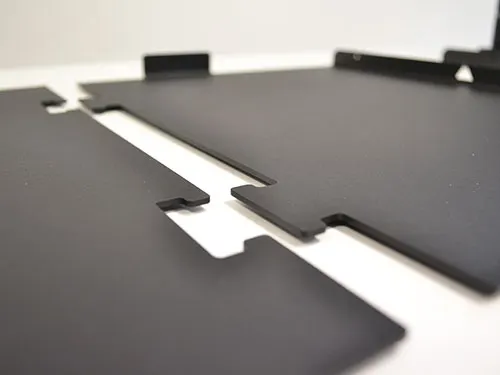

| Printer plate for EPSON C6500A |
| MODELS | LENGTH | WIDTH | HEIGHT |
|---|---|---|---|
| UW6500A | 11.41" (29cm) | 17.71" (45cm) | 14.17" (36cm) |
| RW6500A | 12.60" (32cm) | 17.71" (45cm) | 14.17" (36cm) |
| JPL-6500A | 19.93" (58cm) | 14.56" (37cm) | / |
