Roll to roll systems
Roll to Roll System for Epson C4000 printer
FEATURES

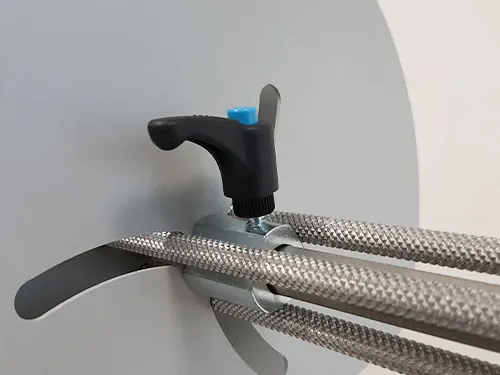

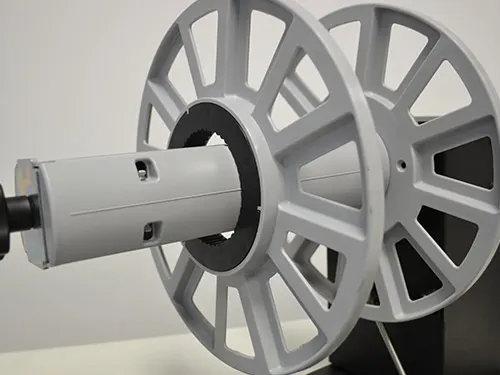

The rewinder and unwinder for Epson C4000 printers are used to manage rolls of media up to 5" (127mm) having an outside diameter up to 10" (250mm). Units are equipped with adjustable core holder 1.57" (40mm) - 4.64" (118mm).

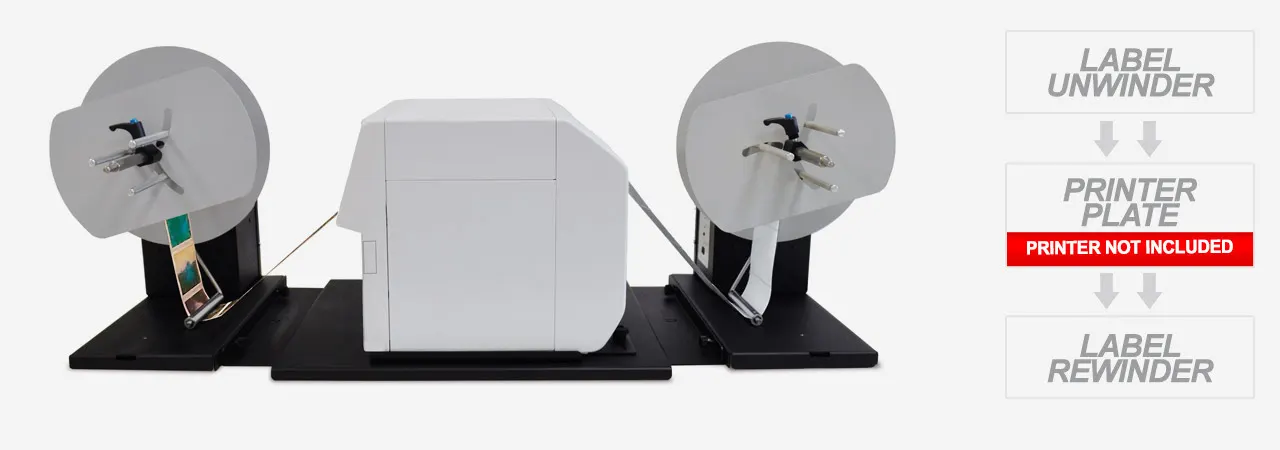

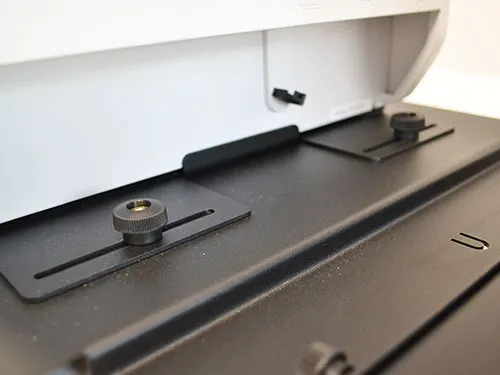

To guarantee an aligned media path in the system, it is available the junction plate to connect the rewinder and unwinder together. It offers also a customized sliding support where lean and fix the Epson printer.

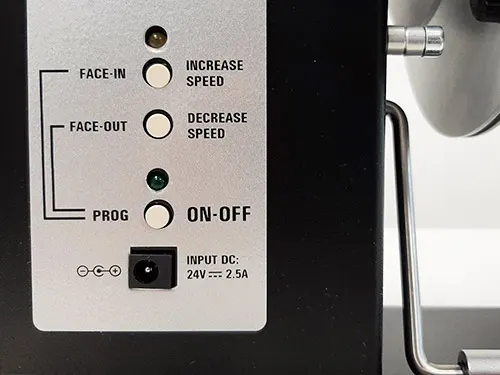

An external power supply 100/240VAC - 2.5A at 24V

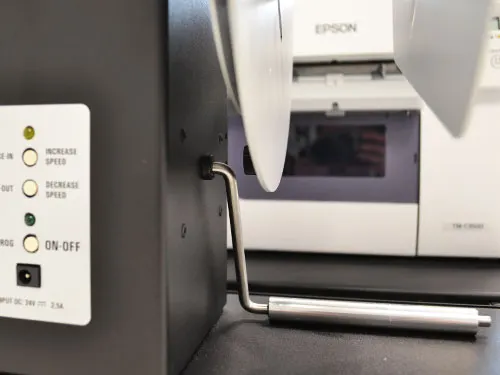

allows an electronic circuit to provide, through the tension arm, the adjustment of the rotation’s speed and rotation’s direction. A 2A fuse is used as protection.
Official page EPSON.
Brochure | User Manual |
| ASS1111-S0 | ASD1111-S0 |
|---|---|
 |
 |

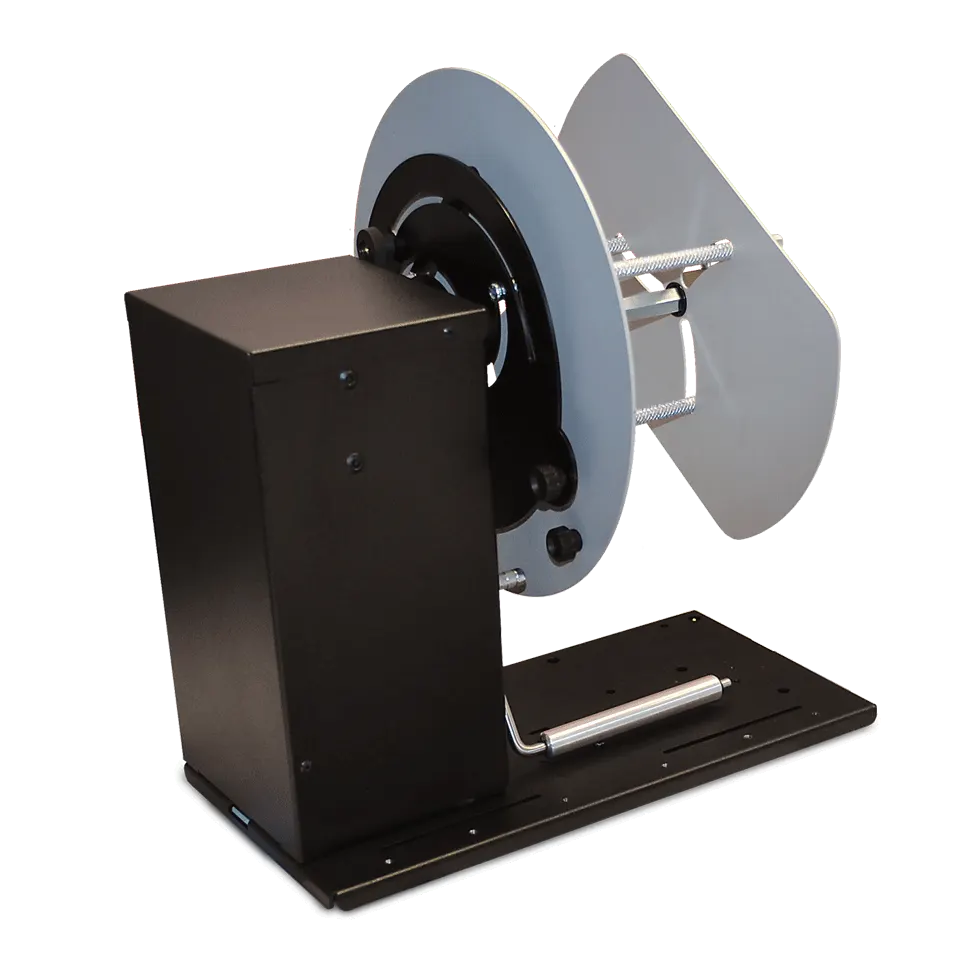

| Label unwinder with 1.57" (40mm) up to 4.64" (118mm) adjustable core holder |

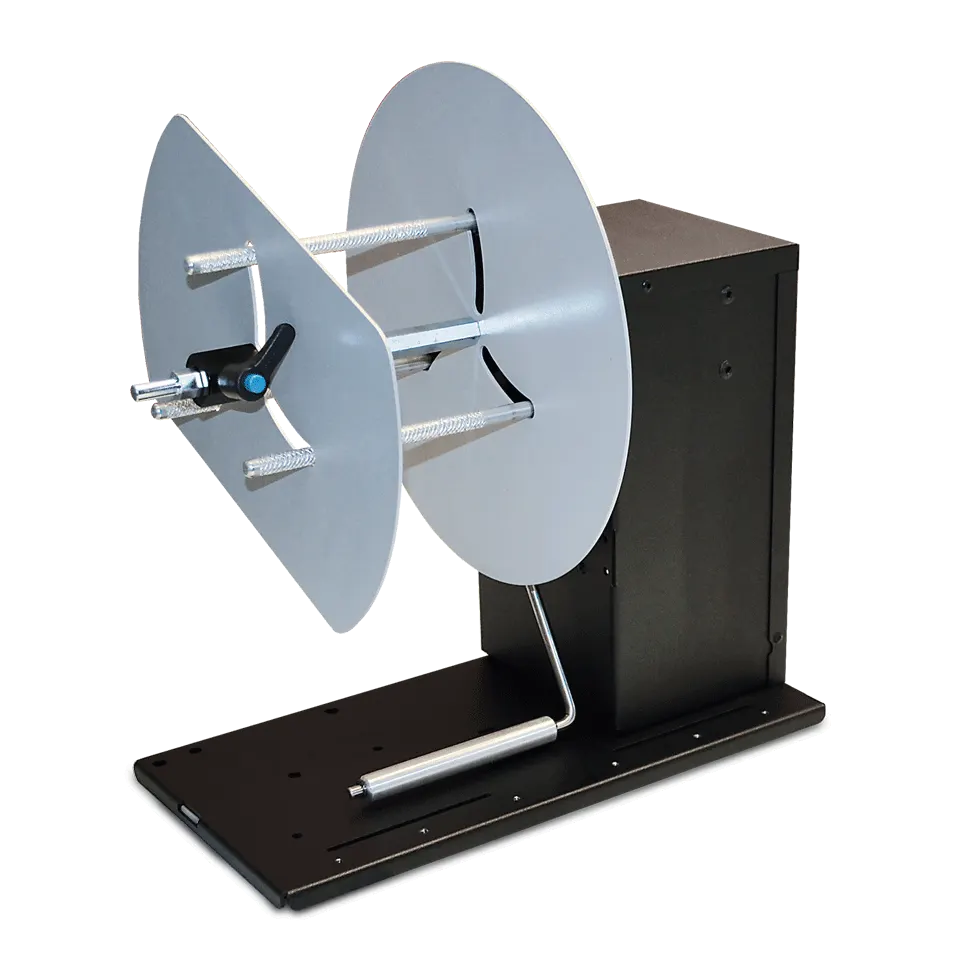

Label rewinder with 1.57" (40mm) up to 4.64" (118mm) adjustable core holder |
| EPS40-JPL |
|---|
 |

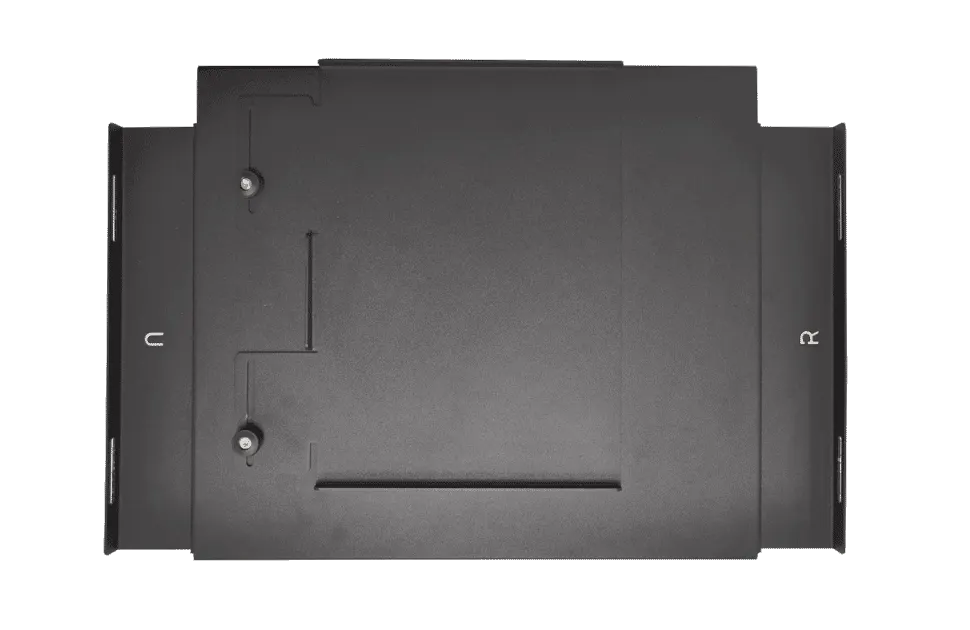

| UW&RW printer plate for EPSON C4000 |
| MODELS | LENGTH | WIDTH | HEIGHT |
|---|---|---|---|
| All models (second plate included) |
19.93" (43cm) | 13.78" (35cm) | 14.17" (36cm) |
| Printer Plate (EPS40-JPL) |
22.04" (56cm) | 14.96" (38cm) | / |
